Oki IP-6620 - 7.6 Print Head Inclination Adjustment

OKI Data Infotech Corporation CONFIDENTIAL
Chapter 7 Adjustment
7-27

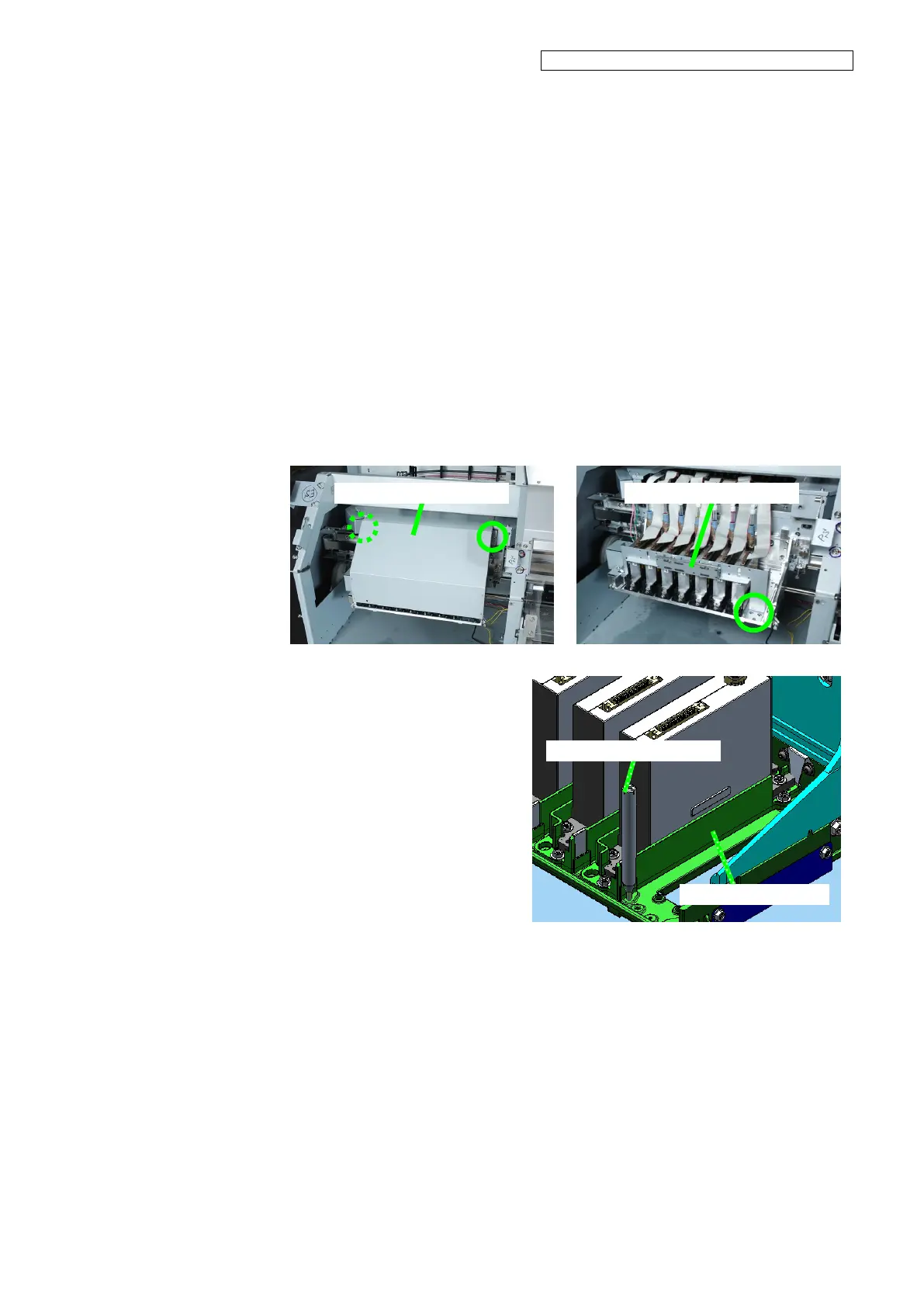

7.6 Print Head Inclination Adjustment
Follow the procedure below to adjust the print head inclination.
1. Open the COVER(CENTER)-F, and
remove the COVER(Y-RAIL)-SR-MW
and the COVER(R)ASSY-MW (see 6.3).
2. Remove the following parts.
- COVER-CARRIAGE-MW with two
securing screws
- CARRIAGE-WEIGHT-ASSY with
one securing screw.
3. Install the PIN(ADJUST HEAD)-MW.
Tighten it gently by hand until it touches
the CASE-HEAD-MW-ASSY.
PIN(ADJUST HEAD)-MW
CASE-HEAD-MW-ASSY
COVER-CARRIAGE-MW
CARRIAGE-WEIGHT-ASSY
