Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-14
3. Remove the following:
- Two screws securing together the
SWITCH(Interlock)-ASSY and the
SWITCH(COVER)-ASSY
- SWITCH(Interlock)-ASSY
- SWITCH(COVER)-ASSY.
Note
The SPACER(SENSOR) on the back of the
SWITCH(Interlock)-ASSY can also be
removed, so pay attention not to lose it.

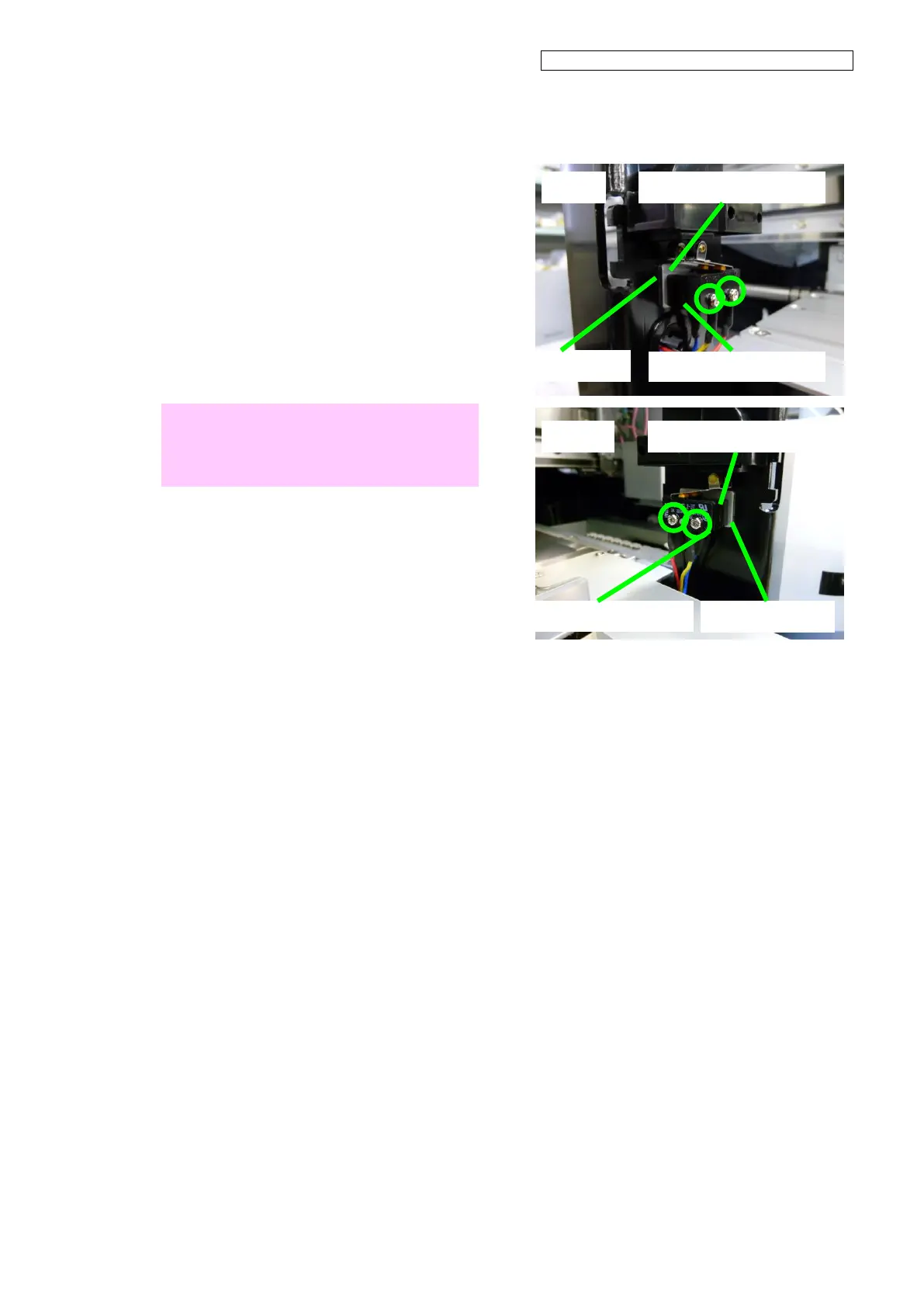

Left side
SWITCH(Interlock)-ASSY
SWITCH(COVER)-ASSY
SPACER(SENSOR)
Right side
SWITCH(Interlock)-ASSY
SPACER(SENSOR)
SWITCH(COVER)-ASSY
