Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-68

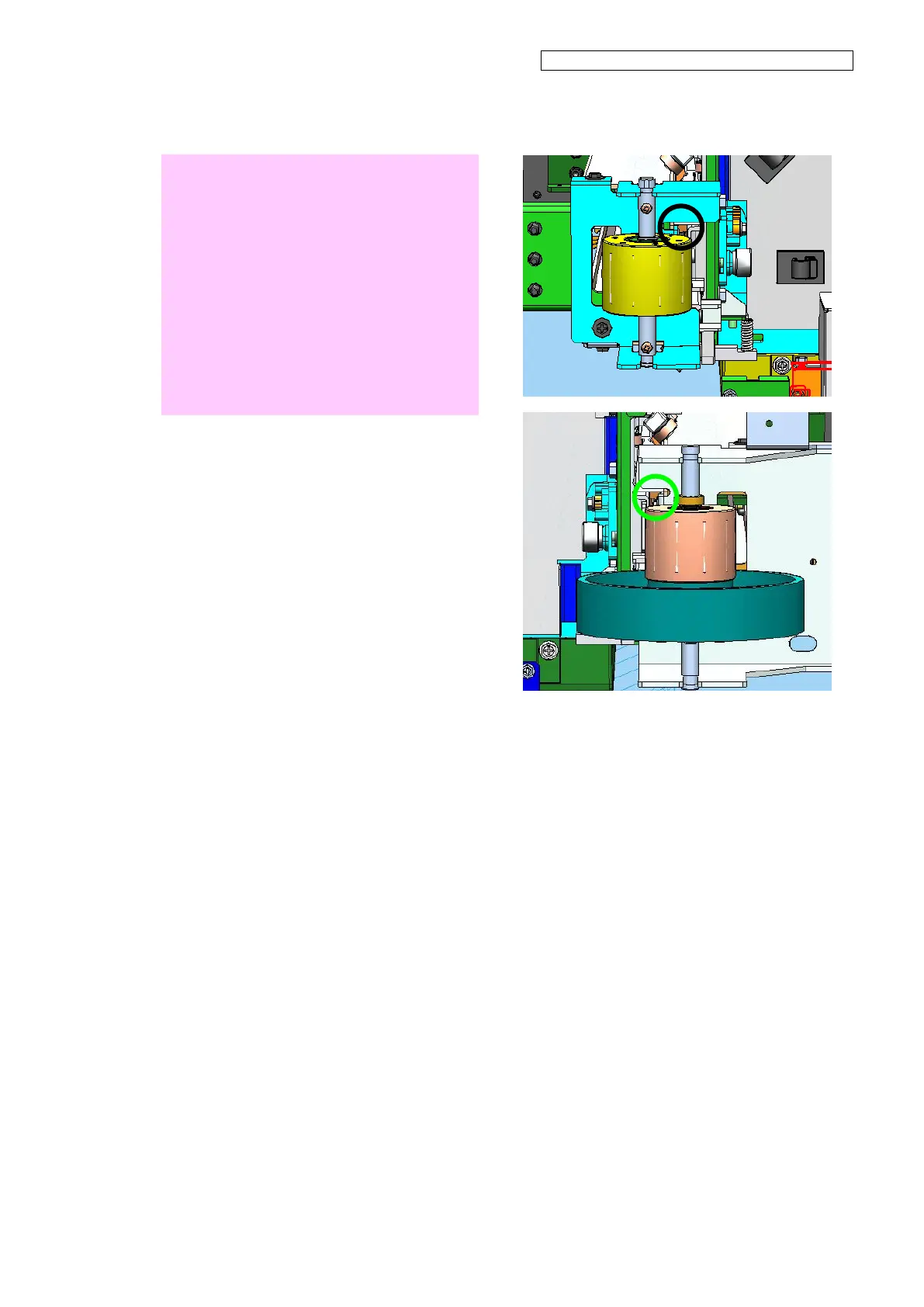

Note for installation
(1) After removing the COVER(SIDE-R)-MW
and the COVER(SIDE-L)-MW, move the
carriage to check visually that the LINEAR
ENCODER ASSY(MW) does not contact:
- T-FENCE's side surface; and
- T-FENCE's upper part.
It is checked easily if viewed from the
angle shown in the figure to the right.
(2) When installing the LINEAR ENCODER
ASSY(MW) to the
LINEAR-ENCODER-MW-ASSY, secure it
with a cable tie. The cable may break if
the part is not secured with a cable tie.
To Next Page
