OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-78

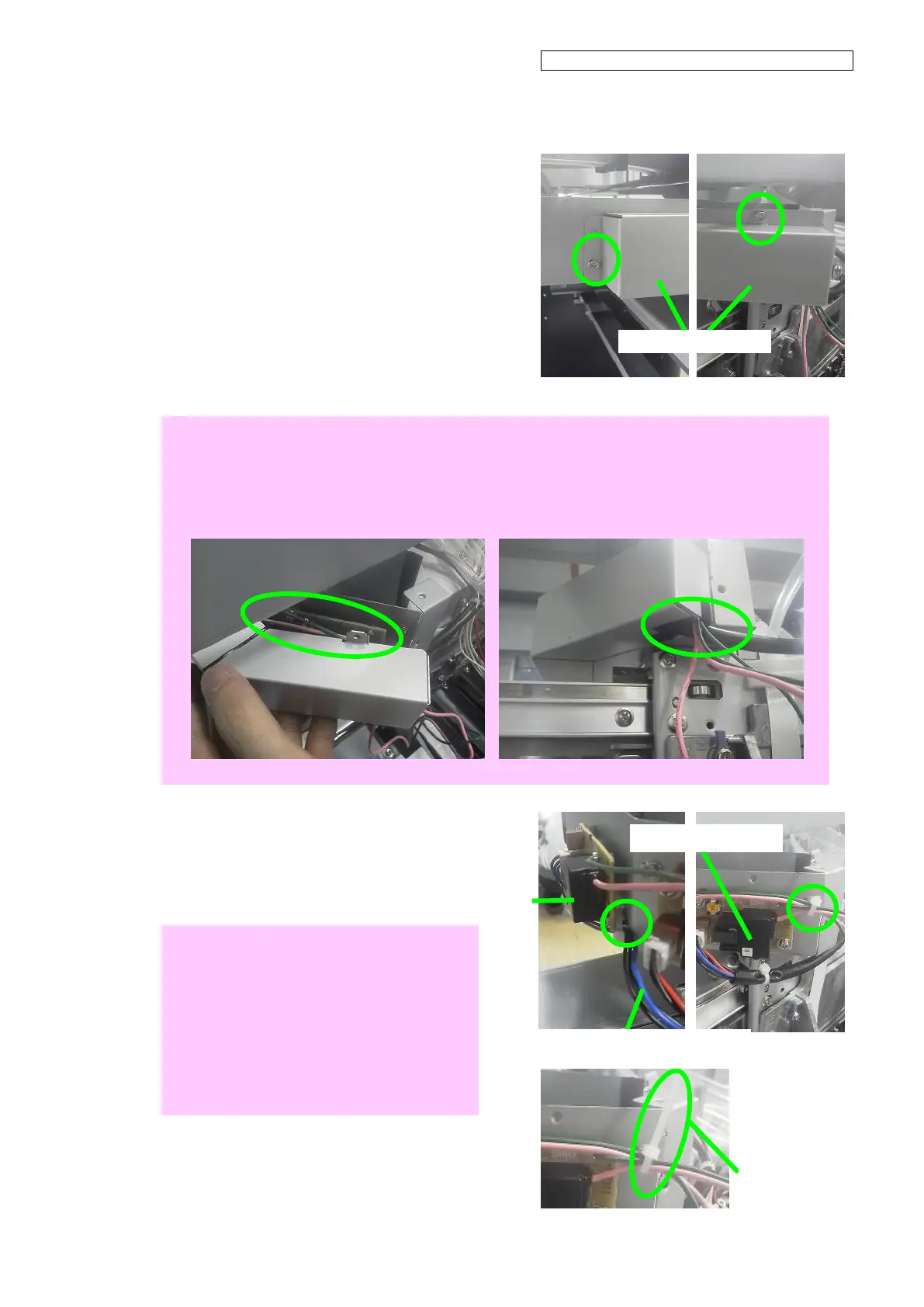

6. Remove the COVER-IONIZER and two
fixing screws.
Notes for installation
Do not catch the IONIZER MODULE (+) and IONIZER MODULE (-) harnesses in the
COVER-IONIZER when installing them.
Pass the IONIZER MODULE (+) and IONIZER MODULE (-) harnesses through the
COVER-IONIZER notch.
7. Cut the two cable ties fixing the
IONIZER MODULE (+) and IONIZER
MODULE (-) harnesses.
Notes for installation
When installing the IONIZER MODULE (+)
and IONIZER MODULE (-) harnesses, secure
them with cable ties as shown in the picture to
the right. Then cut the surplus of the cable
ties.
Fix the CABLE(ADJ-AD)-ASSY harness to
the IONIZER MODULE (-) spacer with a
cable tie. Then cut the surplus of the cable
ties.
COVER-IONIZER
Cut the surplus of
the cable ties
IONIZER MODULE (-)
IONIZER MODULE (+)
CABLE (ADJ-AD)-ASSY on the
IONIZER MODULE (-) side
