Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-79
8. Disconnect the two
CABLE(ADJ-AD)-ASSY connectors from
the IONIZER MODULE (+) and IONIZER
MODULE (-).

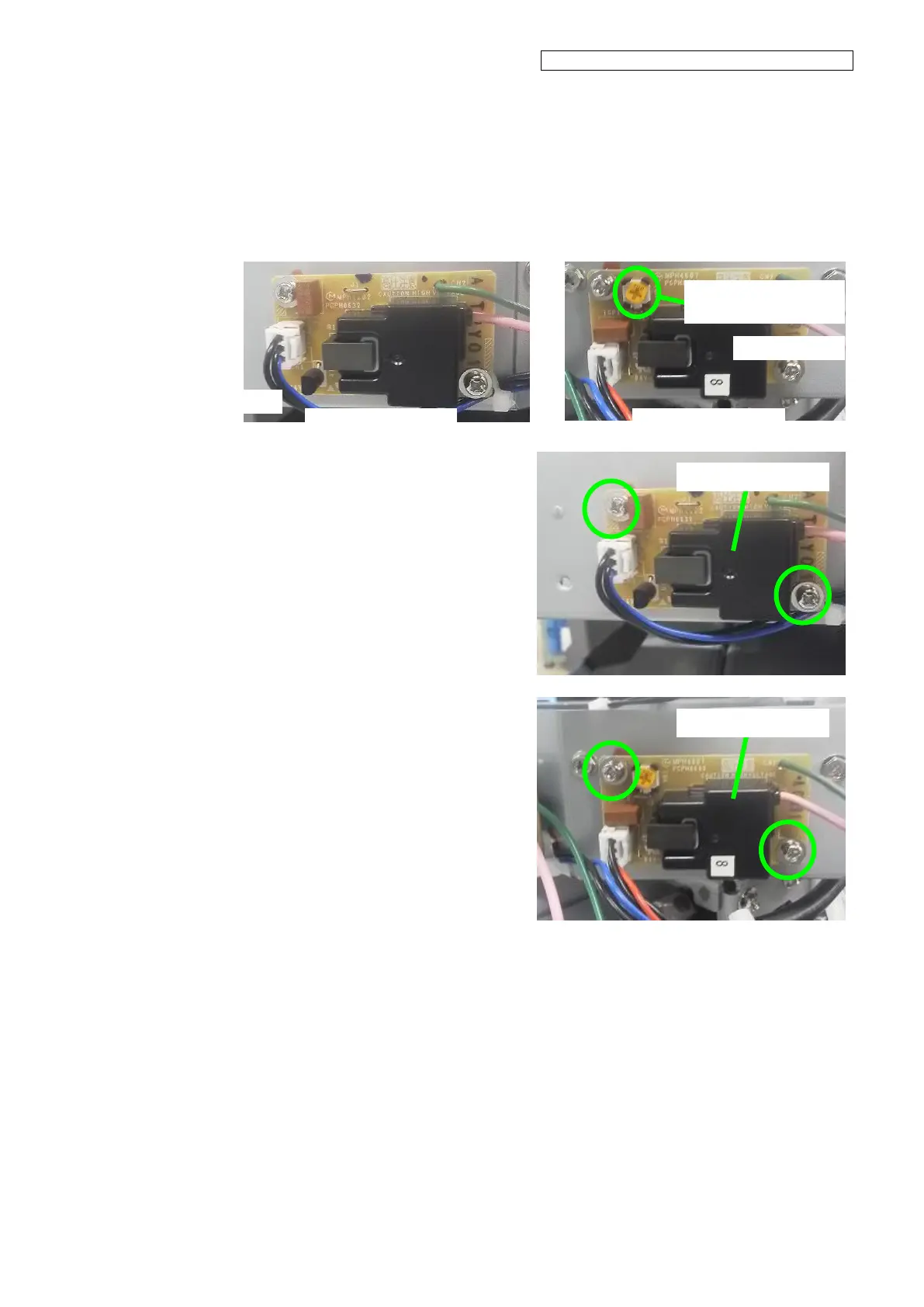

9. Remove the IONIZER MODULE (+) and
the IONIZER MODULE (-) boards with
two fixing screws each (total of four).
The part with the trimmer is
the IONIZER MODULE (+).
IONIZER MODULE (-)
IONIZER MODULE (+)
Media output side
IONIZER MODULE (-)
IONIZER MODULE (+)
Media feeding side
