OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-76

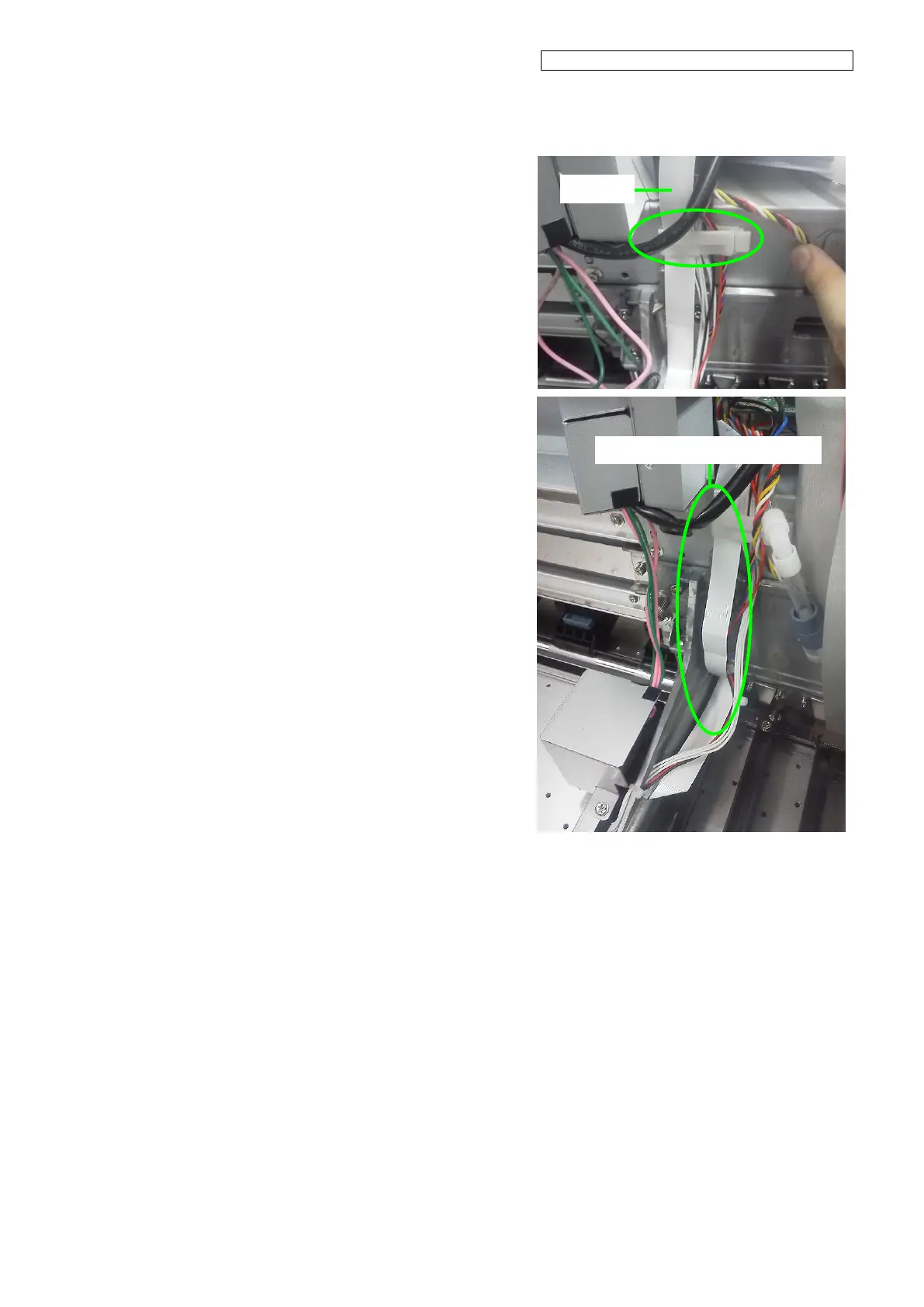

4. Fix the FFC-ADJ, the
CABLE(ADJ-AD)-ASSY, and the edge
sensor relay cable (HV) with clamps.
Place the surplus of FFC-ADJ cable
(tolerance) between the position 1 and
the clamp.
5. Install the PCB-ASSY-ADJ1 (see 6.8.8).
Place the surplus of cable here.
FFC-ADJ
