Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-75

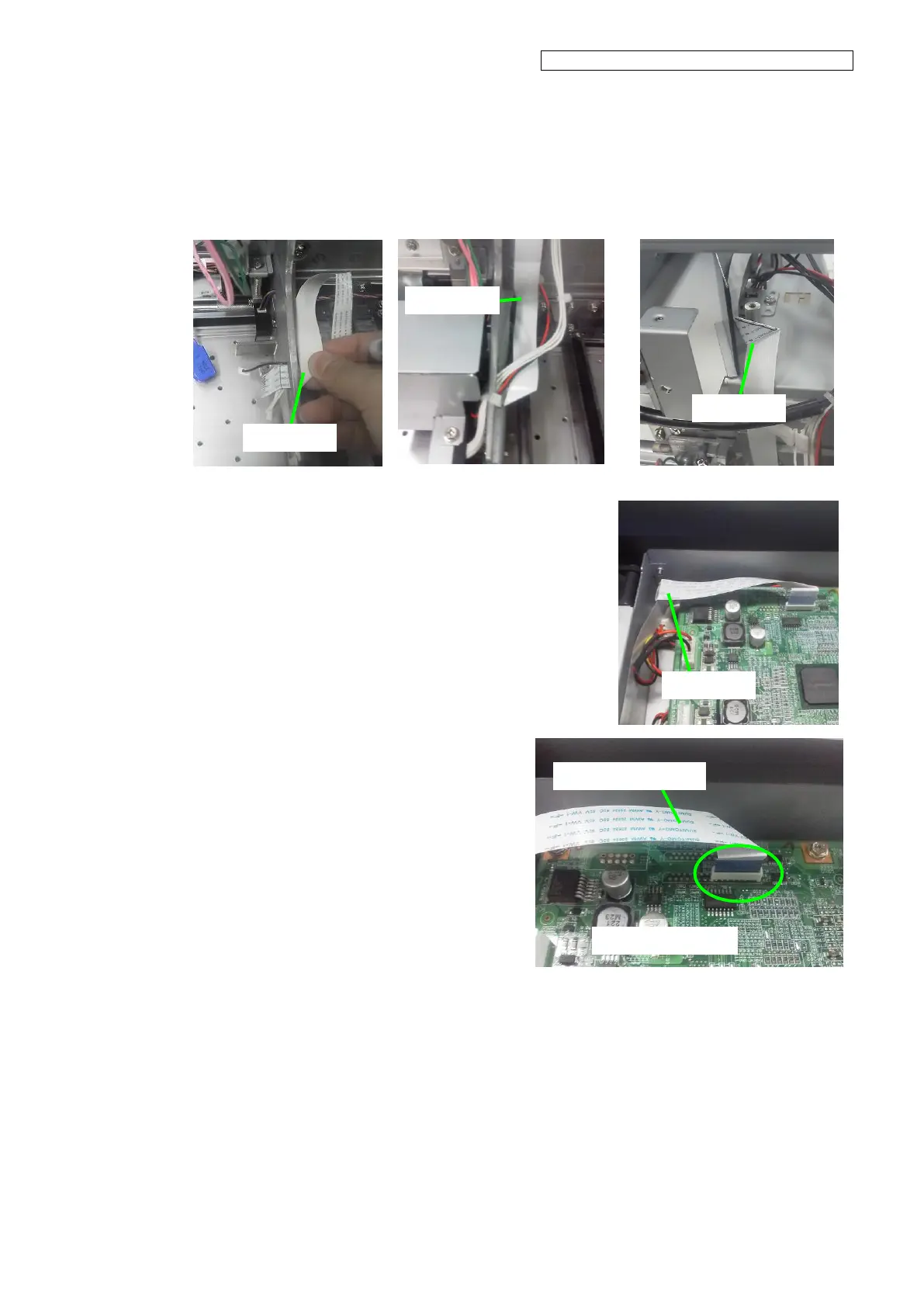

2. Put the FFC-ADJ in position (extremity
for HCB1M) to the CN27 connector on
the PCB-ASSY-HCB1M.
3. Connect the extremity for HCB1M of the
FFC-ADJ to the CN27 connector on the
PCB-ASSY-HCB1M.
Position 1
Position 2
Position 4
Position 3
For PCB-ASSY-HCB1M
PCB-ASSY-HCB1M
