OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-134

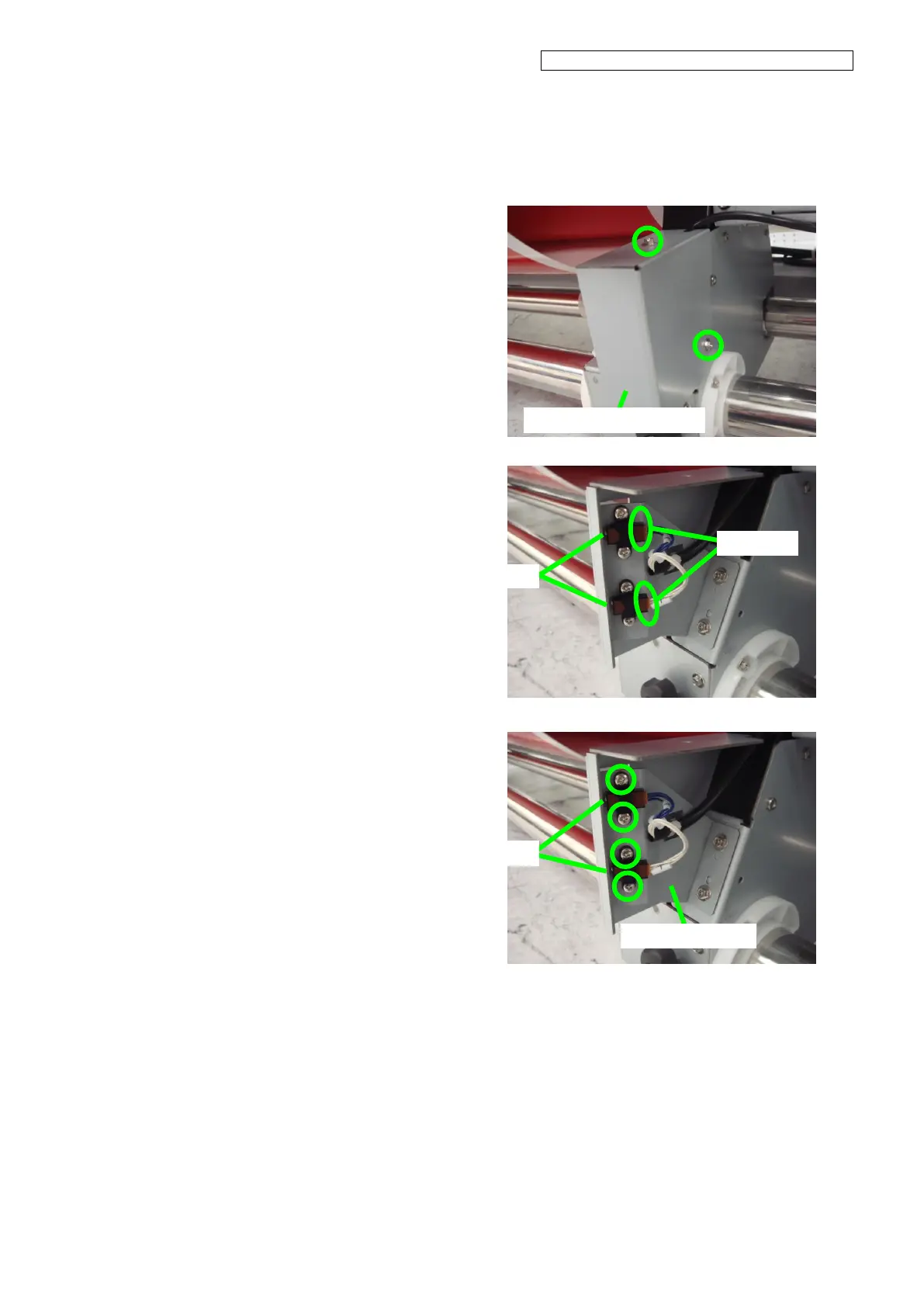

<To remove the PHOTO-IC (light-receiving sensor)>
1. Remove the COVER-SENSOR(TK)-MW
with two securing screws.
2. Disconnect the PHOTO-IC
(light-receiving sensor) connectors.
3. From the PLATE-SENSOR-MW, remove
the PHOTO-IC (light-receiving sensor)
with two securing screws.
COVER-SENSOR(TK)-MW
Connectors
PHOTO-IC (light-receiving sensor)
PHOTO-IC (light-receiving sensor)
PLATE-SENSOR-MW
