Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-132

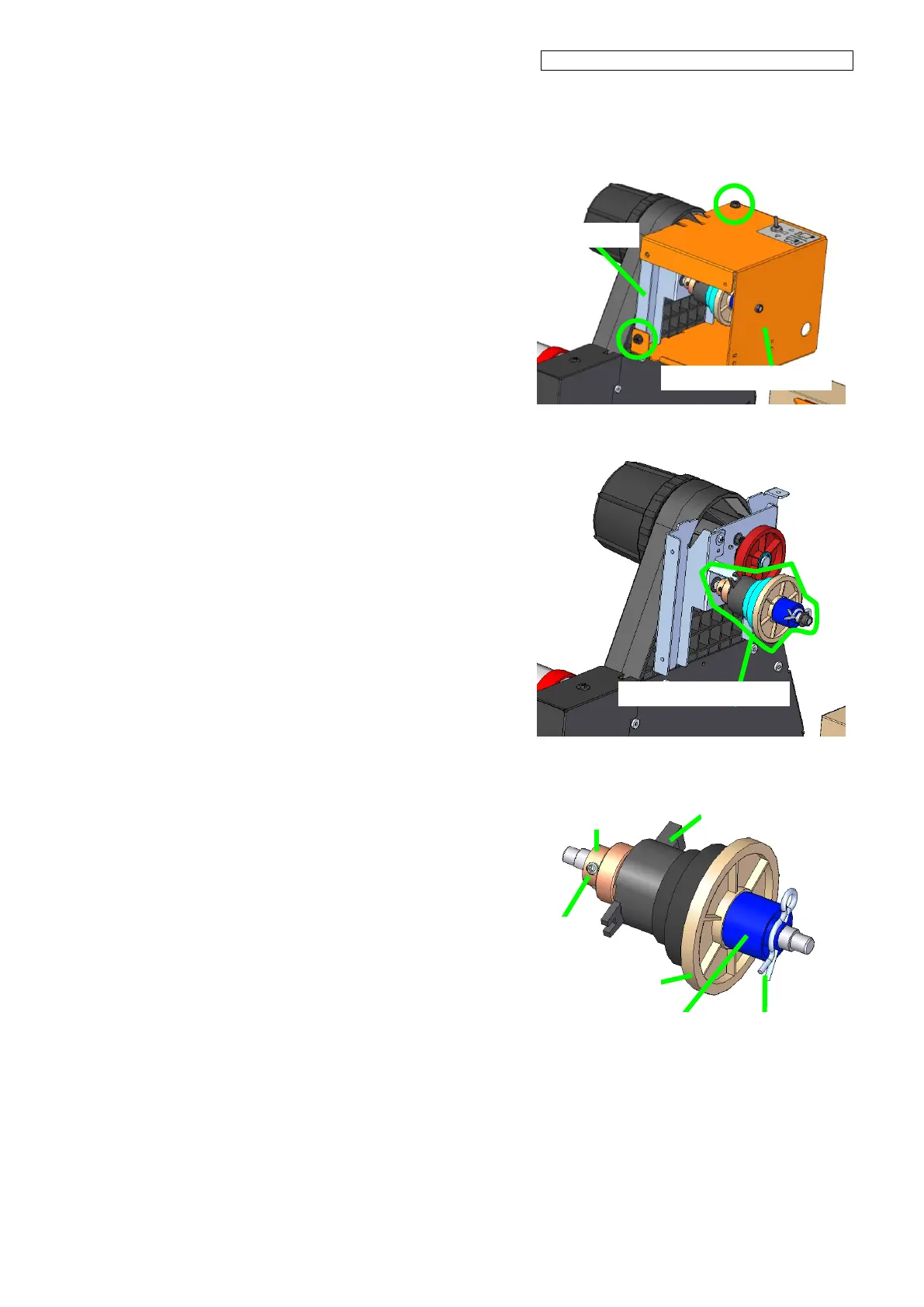

5. From the GEAR-BOX-MW, remove the
COVER-GEAR-BOX-2 with four securing
screws.
Note:
Only two screws are shown in the figure.
6. Remove the SHAFT(CLUTCH)-ASSY.
7. To remove the torque limiter:
Remove the R pin, and remove the
torque limiter.
8. To remove the TUR EM clutch:
Remove the two securing screws, and
remove the TUR EM clutch.
To Next Page
