OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-21
7. Install the
BRACKET(Y-MOTOR-SUPPORT).
To avoid applying stress to the motor
position, first temporarily fix the six
screws before tightening them.
The tightening torque for the screws is as
follows.
- Two M4 screws: 1.5 N·m (15
kgf·cm) torque
- Four M2.6 screws: 0.4 N·m (4
kgf·cm) torque

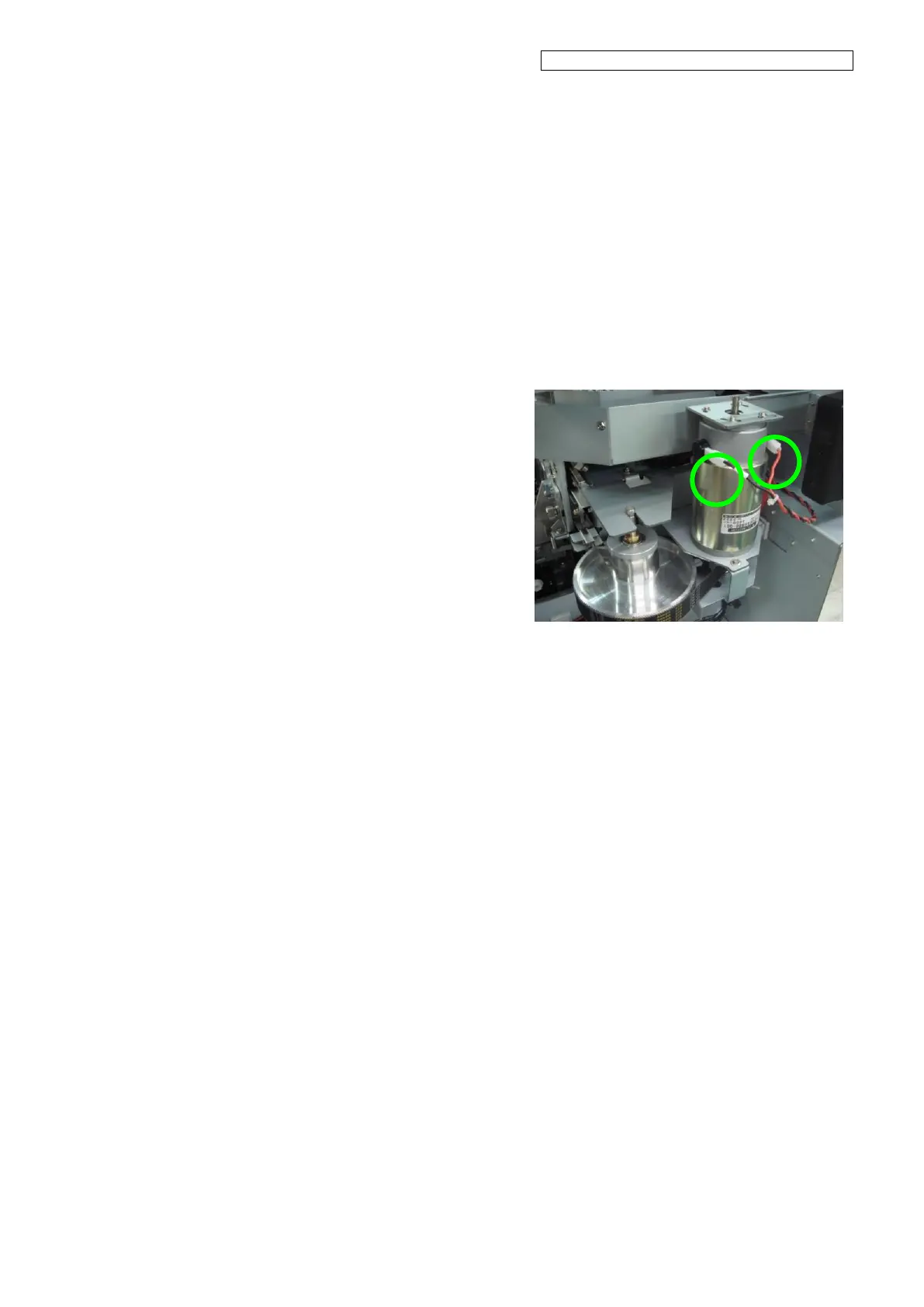

8. Connect the two cables to the motor, the
red one to the right and the black one to
the left.
9. Install the PLATE-CLOSEHOLE-MW.
10. Re-install the covers you have removed.
To Next Page
