OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-20
<Assembly>

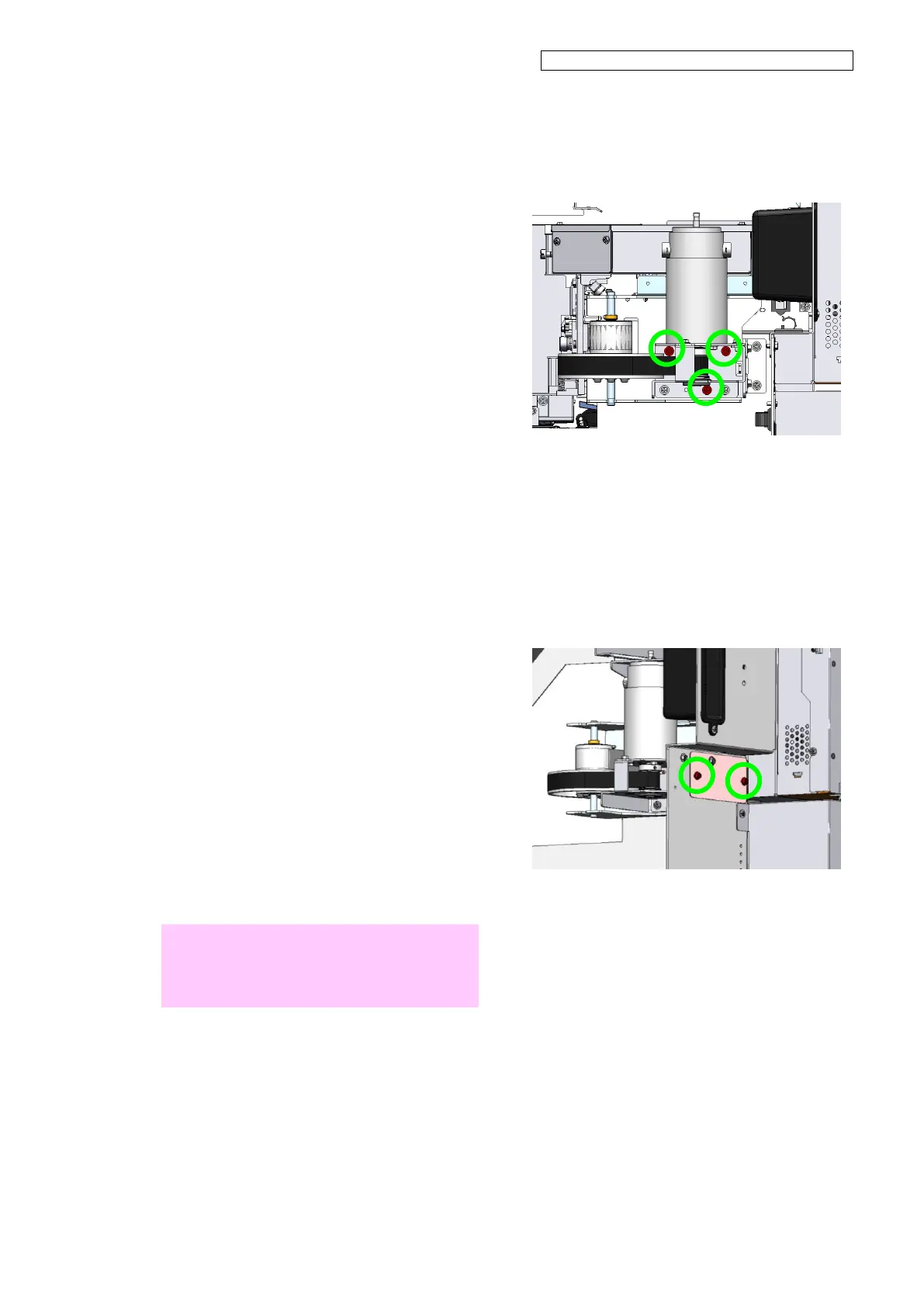

1. Put the DRIVING PULLEY and Y DRIVE
MOTOR in place together, and
temporarily fix the three screws with the
timing belt loosened.
2. Attach the hole at the SUS-BELT
extremity to the carriage protrusion.
3. Attach the SUS-BELT securing screw
and tighten it at 1.5 N·m (15 kgf·cm)
torque.
4. Adjust the SUS-BELT tension (see 7.2).
5. Remove the PLATE-CLOSEHOLE-MW
with two fixing screws.
6. Adjust the timing belt tension (see 7.3).
Note
Adjust the tension of the timing belt after the
SUS-BELT. The tension of the timing belt will
be high if it is adjusted first.
