OKI Data Infotech Corporation CONFIDENTIAL
Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-32

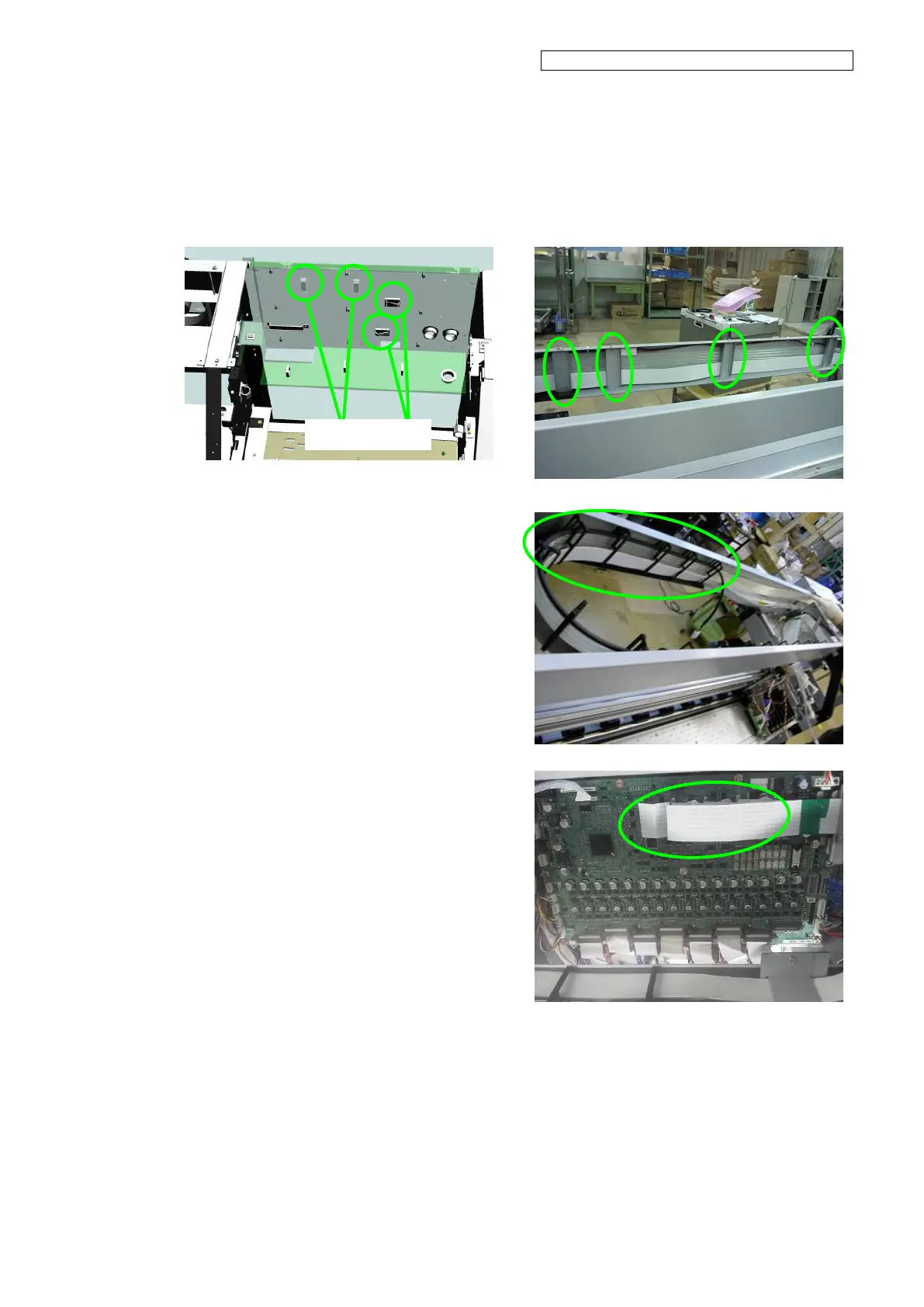

4. Remove:
- Four clamps on the back of the
controller box; and
- Four metal plates securing the FFC.
5. Remove the fixed part of the FFC, and
then remove the FFC.
6. Remove the FFC from the
PCB-ASSY-HCB1M board.
Four clamps
