Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-93

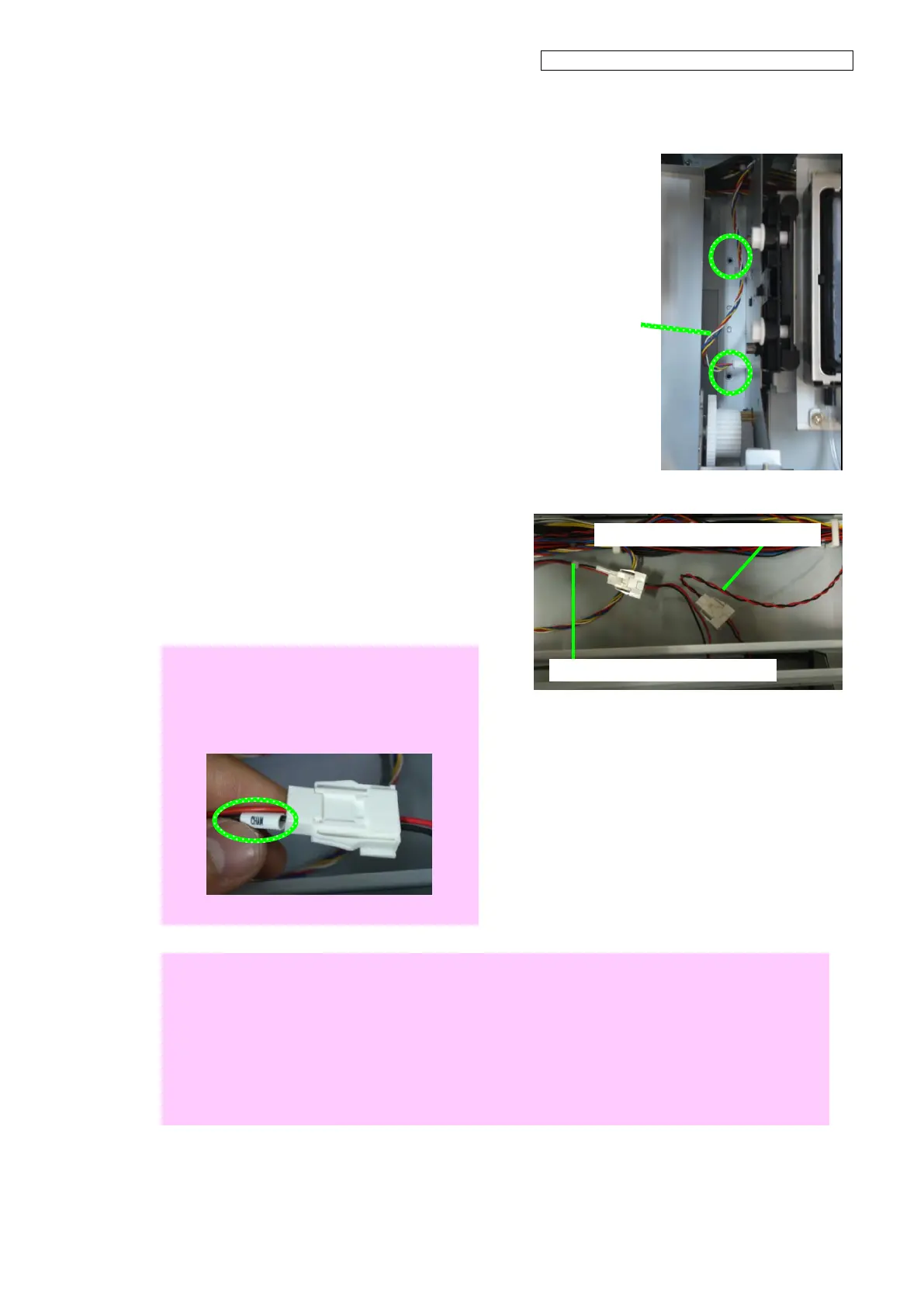

6. Disconnect the MOTOR(PW)-ASSY-MW
connector and remove the two screws on
the left securing the
CAPPING-UNIT-MW.
7. Disconnect the two connectors of the
MOTOR(HV-CAP)ASSY and the
PH-CAM-DRIVE-ASSY located at the
back of the CAPPING-UNIT-MW right
rear corner, and then remove the
CAPPING-UNIT-MW.
Note
Connect the cable attached to the printer that
indicates CHAM to the
PH-CAM-DRIVE-ASSY.
Notes for installation
 When setting the pump tubes between the projections of TRAY(WI), be sure to make the tube
ends touch the bottom of TRAY(WI) that receives the waste ink, in order to remove the
remaining ink inside the tube.
 When installing the CAPPING-UNIT-MW, adjust the CAPPING-UNIT-MW's holes in the right
and left sides with the projection before fixing it.
 Adjust the PLATE(CARRIAGE-CAP)-MW (see 7.8).
 After the replacement, check that leak tightness is maintained on the capped status (see the
next page).
MOTOR(PW)-ASSY-MW cable
MOTOR(HV-CAP)ASSY cable
PH-CAM-DRIVE-ASSY cable
