Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-29

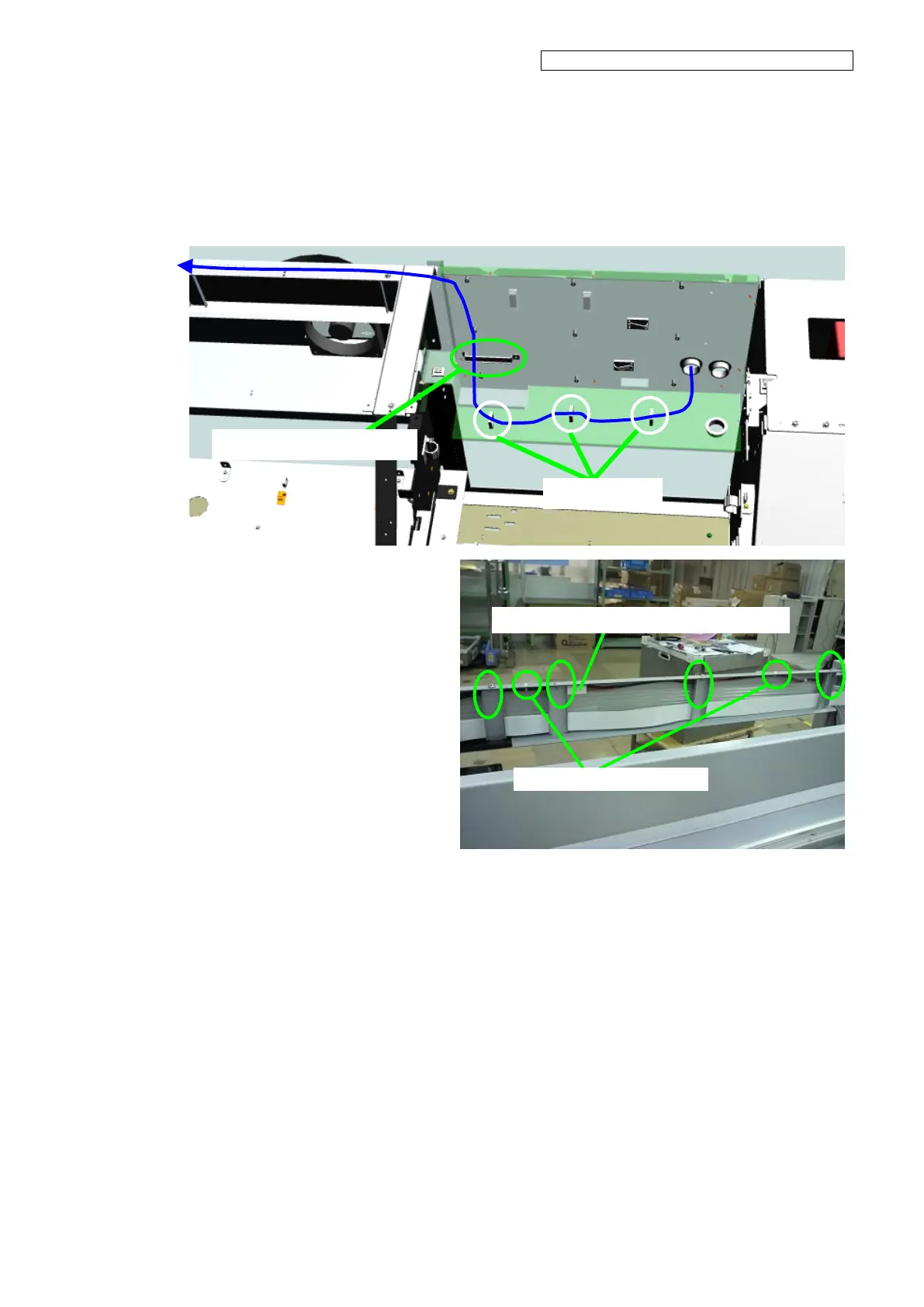

4. Remove the three clamps, the two cable
ties, and the four metal plates securing
the harness, and then remove the
CABLE(Board-Power)-ASSY(MW).
5. Remove the PCB-ASSY-HCB1M board
(see 6.8.4).
Two cable ties
CABLE(ACT-HCB)1-ASSY(HV104) connection
Pass through the tube holder.
Three clamps
