Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-64

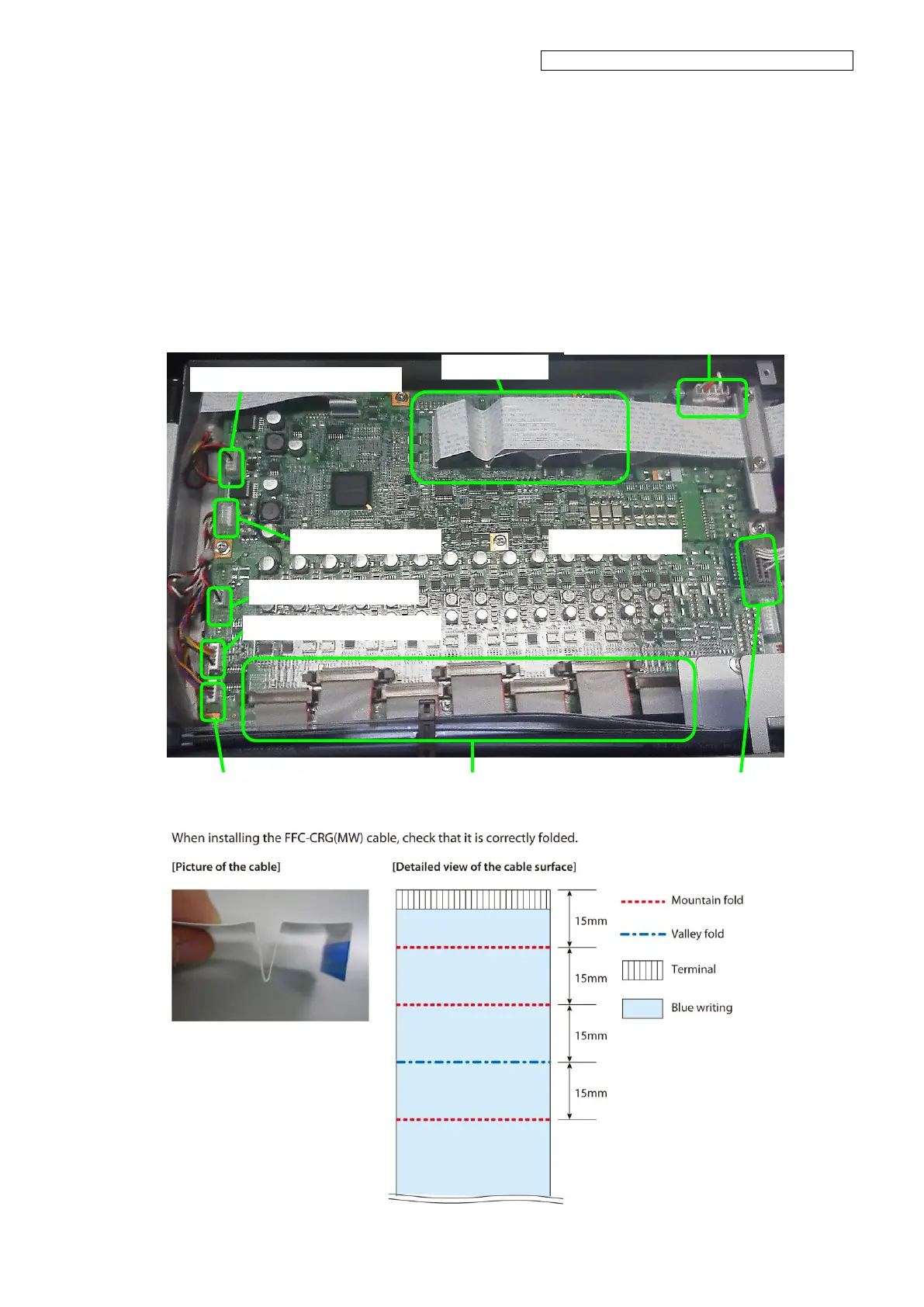

6. From the PCB-ASSY-HCB1M, remove:
- CABLE(HEAD)2-ASSY(MW);
- FFC-ADJ, the FFC-CRG(MW);
- LINEAR ENCODER ASSY(MW);
- Edge sensor relay cable (HV);
- CABLE(HPOS)-ASSY(MW);
- CABLE(CarriageFan)-ASSY(MW);
and
- CABLE(ACT-HCB)1-ASSY(HV104).
PCB-ASSY-HCB1M
CABLE(ACT-HCB)1-ASSY(HV104)
FFC-CRG(MW)
CABLE(ADJ-AD)-ASSY
CABLE(HEAD)2-ASSY(MW)
Edge sensor relay cable (HV)
LINERA ENCODER ASSY(MW)
CABLE(HPOS)-ASSY(MW)
CABLE(ADJ-AD)-ASSY
CABLE(CarriageFan)-ASSY(MW)
