Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-102

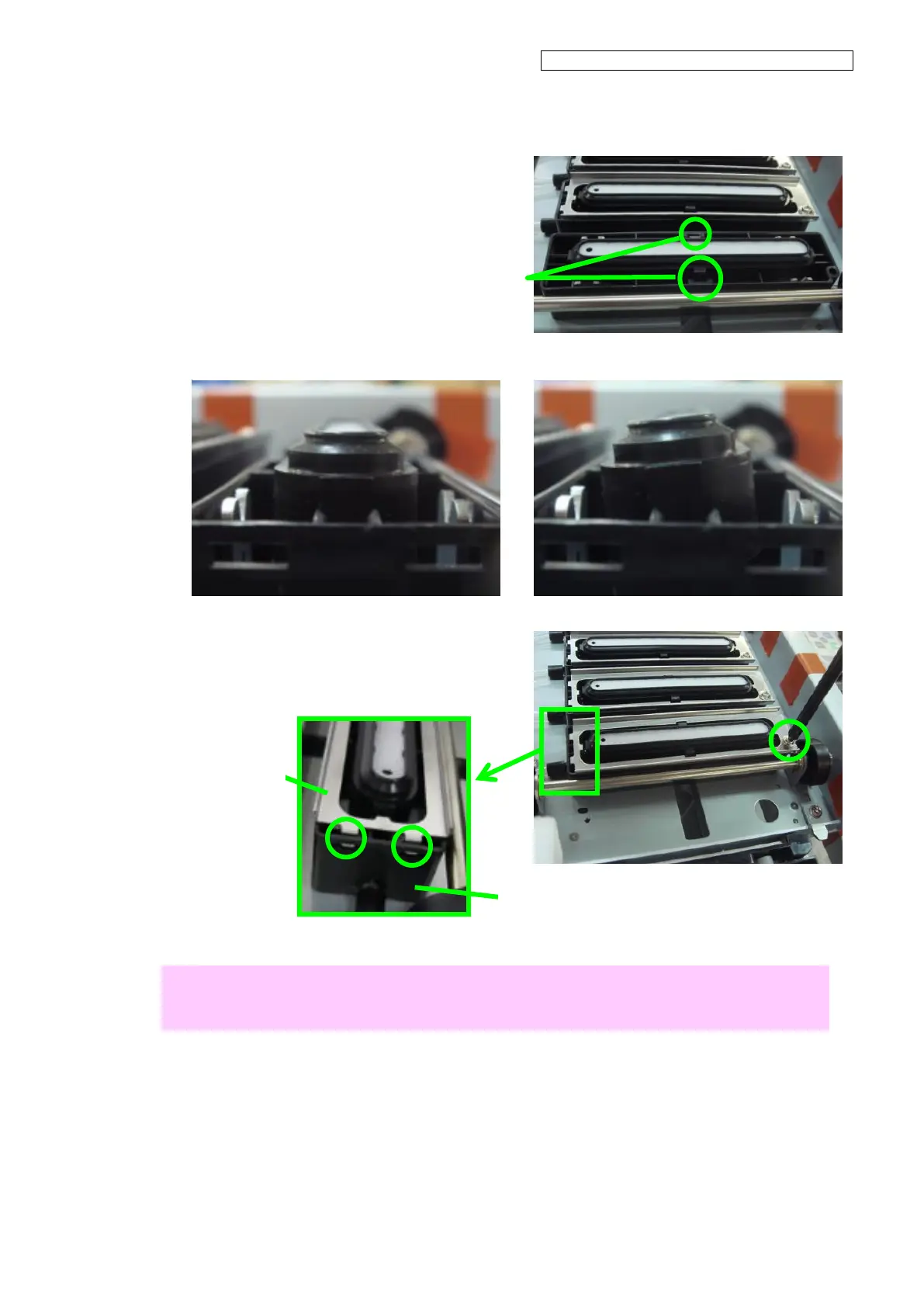

10. Check that the two snap-fits are engaged.
If not, push them with your finger until
they engage.
11. Hook the tabs at the extremity of the
COVER(CAP-F) to the FRAME(UD-HV),
and then secure with the screw.
Note
After you have finished replacing the cap, check that there is not leakage when the cap is closed
(see 6.10.1).
Correct position: The snap-fit is engaged.
Wrong position: The snap-fit is not engaged.
To Next Page
