Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-121

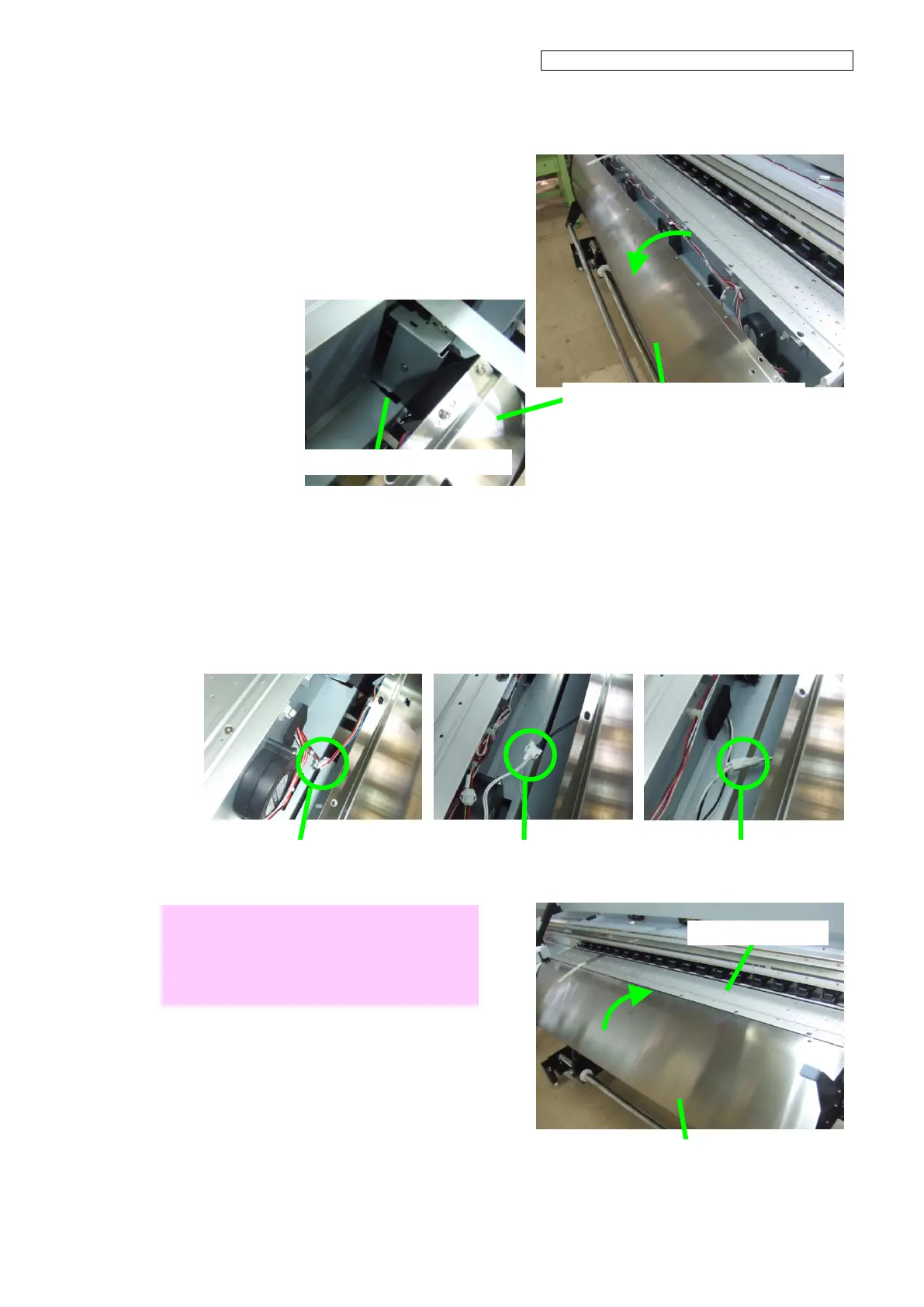

5. Hook the
PAPER-GUIDE-DELIVERY64-MW-ASSY
attachment part to the
FRAME-ASSY64(MW) square hole, and
keep it at a slant.
6. Disconnect the following parts:
- One heater cable connector;
- One thermistor connector; and
- One PCB-ASSY-SNS1 connector,
and remove the
PAPER-GUIDE-DELIVERY64-MW-ASS
Y from the attachment part.
Note for installation
Install the
PAPER-GUIDE-DELIVERY64-MW-ASSY
tightly in contact with the
PLATEN64-CV-ASSY.
FRAME-ASSY64(MW) square hole
PAPER-GUIDE-DELIVERY64-MW-ASSY
PAPER-GUIDE-DELIVERY64-MW-ASSY
To Next Page
