Chapter 6 Parts Replacement (Disassembly/Reassembly)
6-142

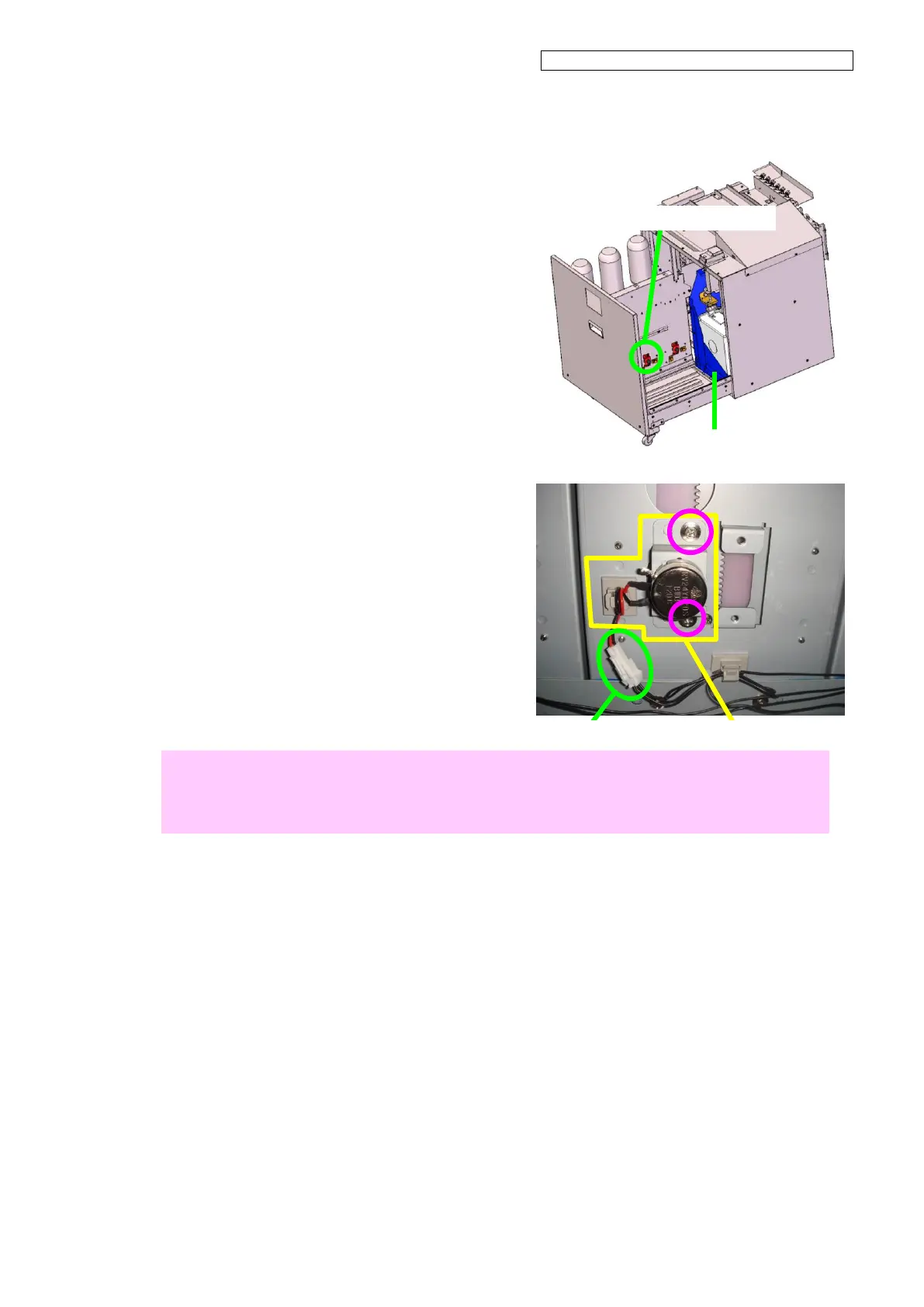

4. Slide the BASE-BOTTLE-BU-ASSY to
the rear of the drawer to have access to
the REMAINING INK SENSOR on the
other side.
(The figure to the right shows the
position to replace the C sensor on the
left side of the unit.)
5. Disconnect the REMAINING INK
SENSOR connector.
6. Remove the REMAINING INK SENSOR
with two screws.
Note
When you have replaced the REMAINING INK SENSOR, adjustment is required during the
installation.
See 7.9 REMAINING INK SENSOR, MW, LCIS Adjustment for the adjustment procedure.
REMAINING INK SENSOR,MW,LCIS
To Next Page
