Chapter 7 Adjustment
7-10

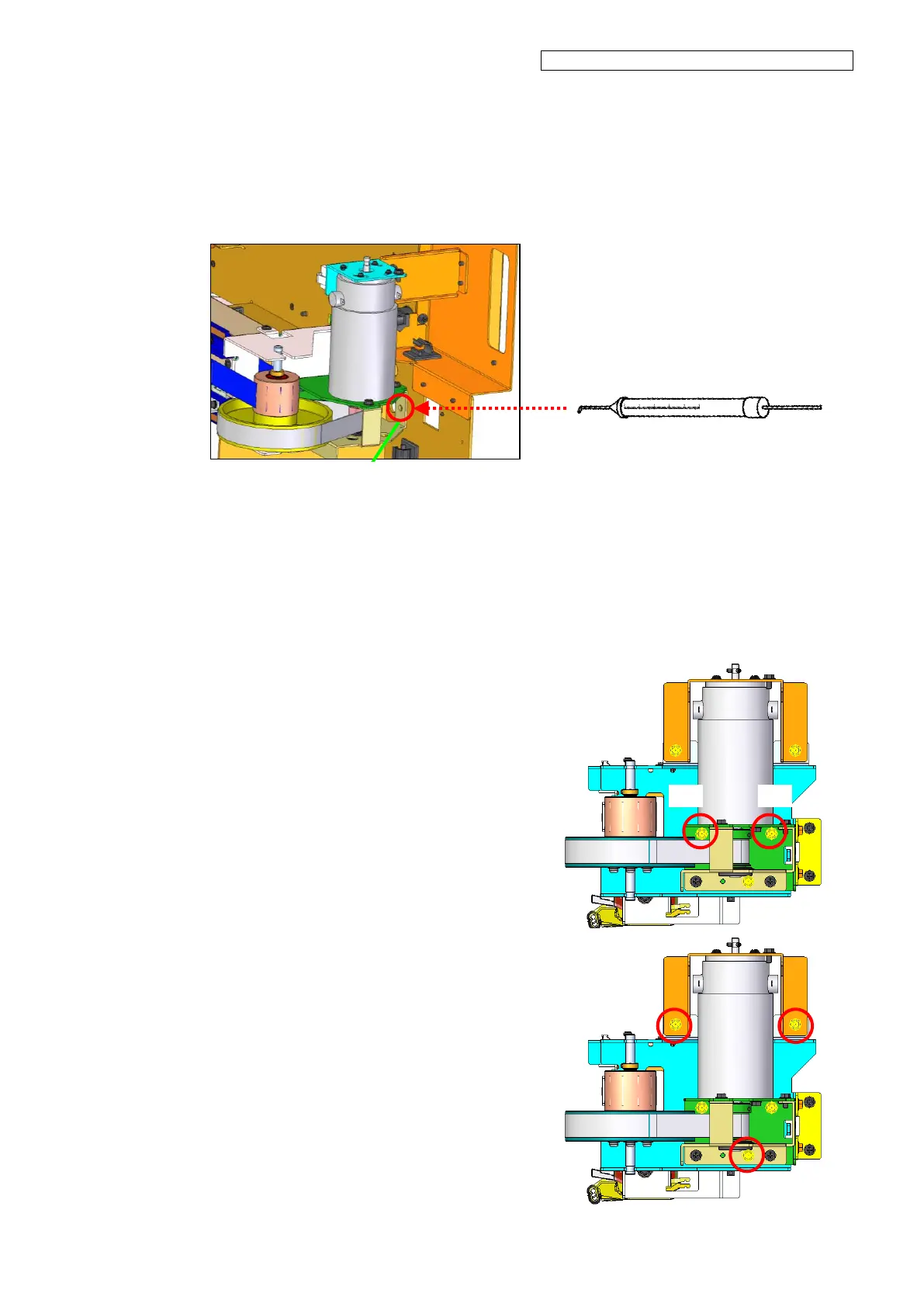

3. Hook the 98 N (10 kgf) tension gauge to
the BRACKET(DSE64B-SUB)-MW hole
(see the figure below).
4. Pull the gauge to display the tension
value indicated below.
<Adjustment value>
Tension: 34.3 N ±2 N (3.5 kgf)
5. While maintaining the indicated tension
value, first secure the screw (1), then
secure the screw (2).
<Torque value>
Screw tightening torque: 1.5 N・m (15Kgf・cm)
6. Secure the three screws shown in the
figure.
<Torque value>
Screw tightening torque: 1.5 N・m (15Kgf・cm)
BRACKET(DSE64B-SUB)-MW
(1)
(2)
(1)
(2)
