Chapter 7 Adjustment
7-24
Note
To move the carriage to the maintenance
side: enter a positive value
To move the carriage to the cap side: enter a
negative value
If the wiper blade extremity is not in the nozzle guard groove, write down the size of the gap in
unit of 0.1 mm, and press the OK button.
If the wiper blade extremity enters the nozzle guard groove, press the OK button.
10. The wiper blade returns to its home
position, then the carriage moves to the
home position.
The wiping position of the selected print head is displayed.
CARRIAGE IS MOVING
PLEASE WAIT

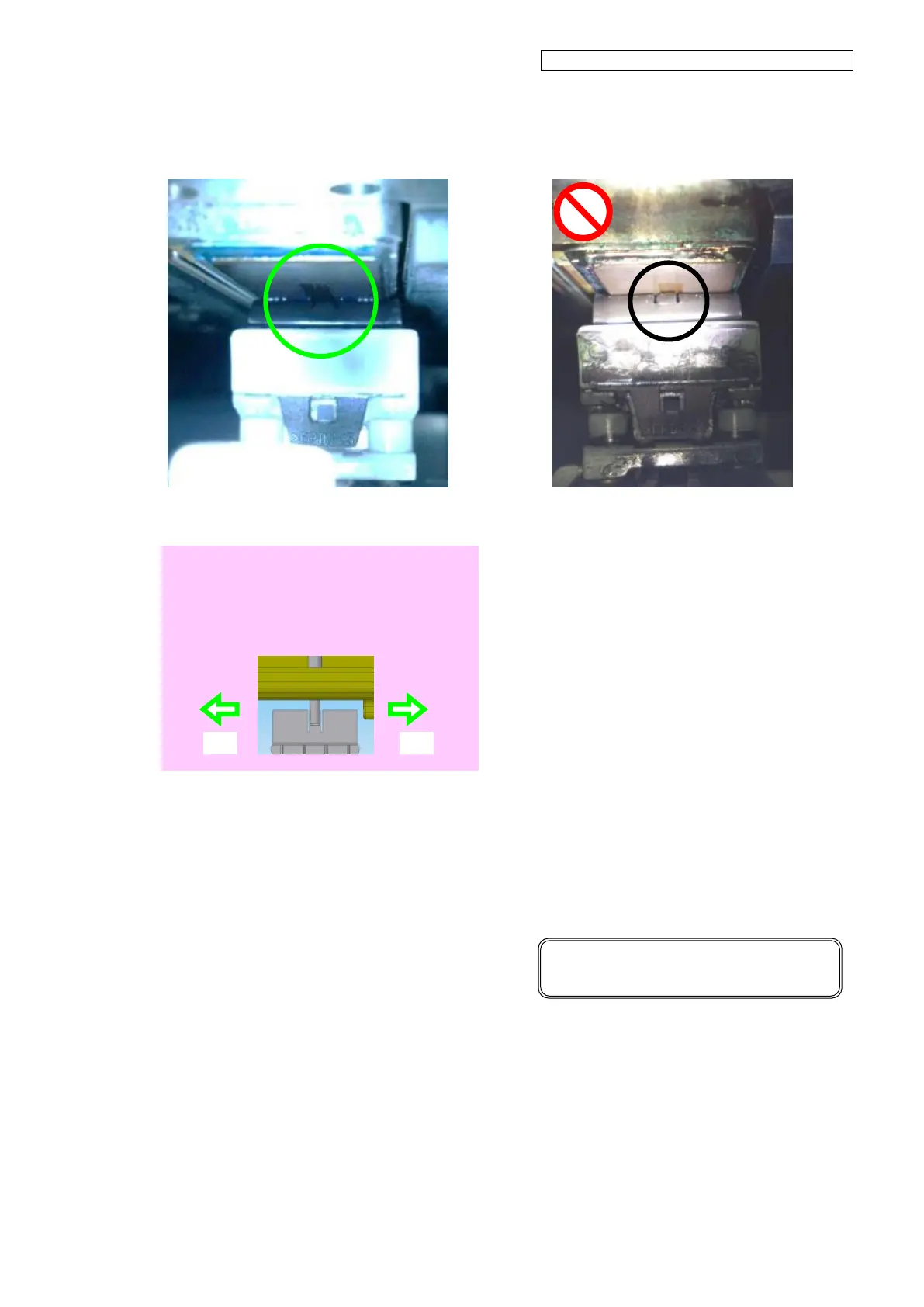

The wiper blade extremity should enter in the
nozzle guard groove.
The wiper blade extremity is above the
nozzle guard (in the black circle).
