Chapter 7 Adjustment
7-40

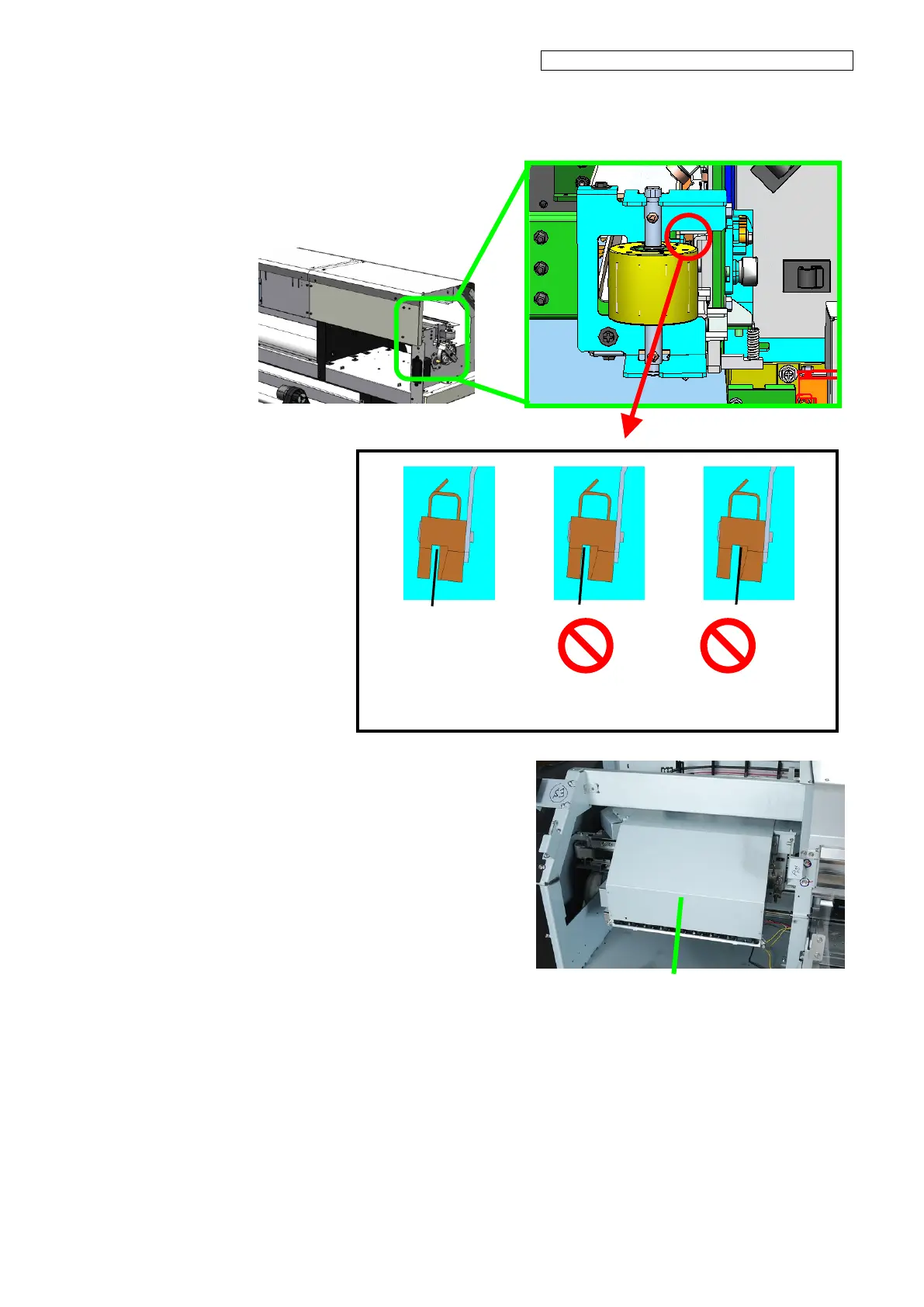

5. Check the horizontal position of the
linear encoder to the T fence from the
printer left side (part circled in red in the
figure).
6. Remove the COVER-CARRIAGE-MW.
Adjust the linear encoder horizontal position when not correct.
COVER-CARRIAGE-MW
✔
Correct
Not
correct
Not
correct
