Chapter 8 Operation Mechanism
8-3
(b) Media Feeding System

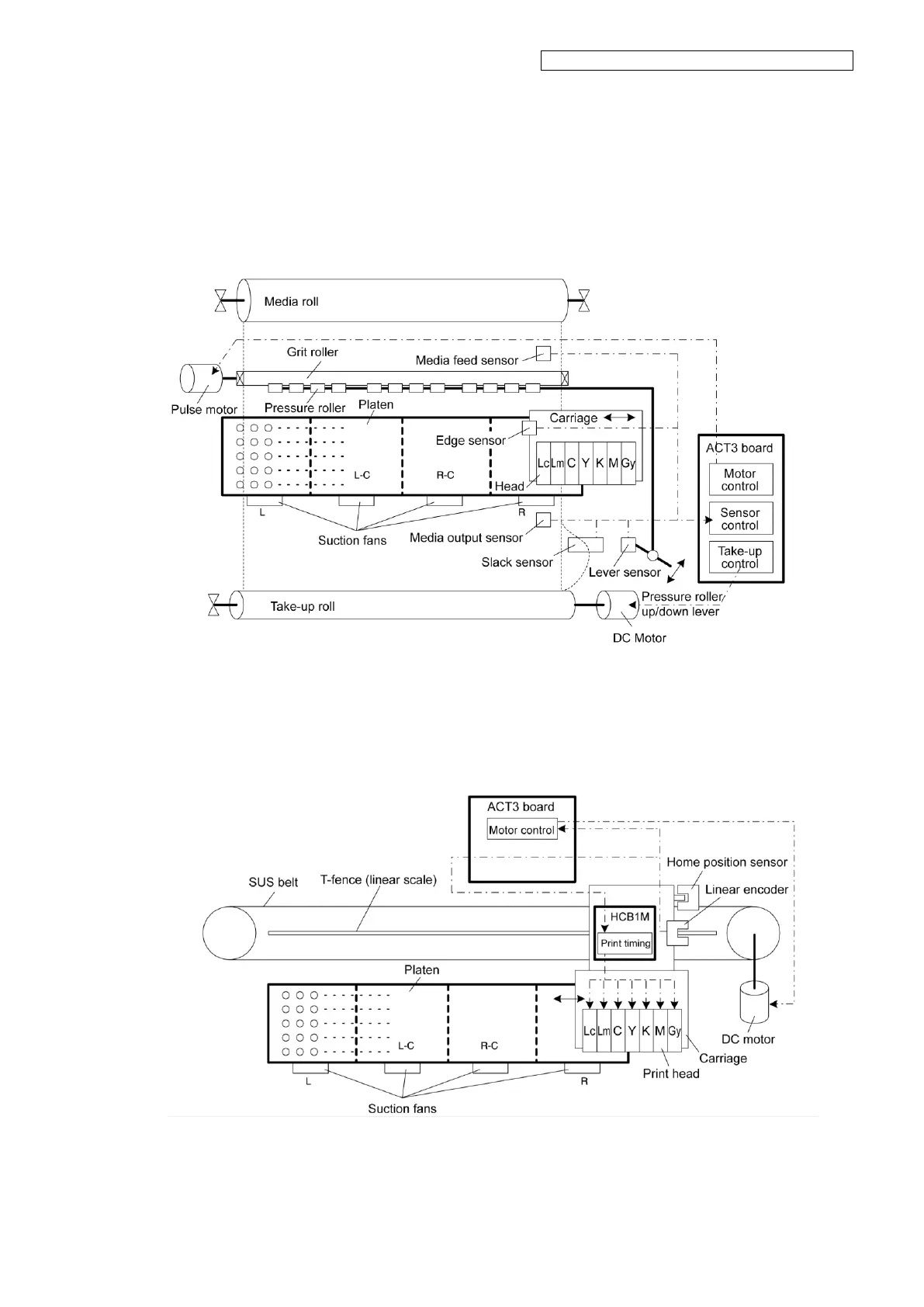

The media feeding system comprises the following units from (1) to (6) as shown in figures 8.2
and 8.3.
< X axis feeding system mechanism> (sub-scanning)
Figure 8.2 X axis feeding system mechanism
< Y axis feeding system mechanism> (main scanning)
Figure 8.3 Y axis feeding system mechanism
(1) Media feed unit
