Chapter 3 Maintenance Mode Functions and Operations
3-51
(c) ENTER PH ADJ VAL
Enter the print head position adjustment value.
In the PH POSITION ADJUST menu, select ENTER PH ADJ VAL with the Up and Down buttons,
and then press the OK button.
Select  CC : ±XX for each color with the Up and Down buttons, and then press the OK button.
CC: Print head color
±X: Current value
±Y: Value after change
Setting range: -32 to +31

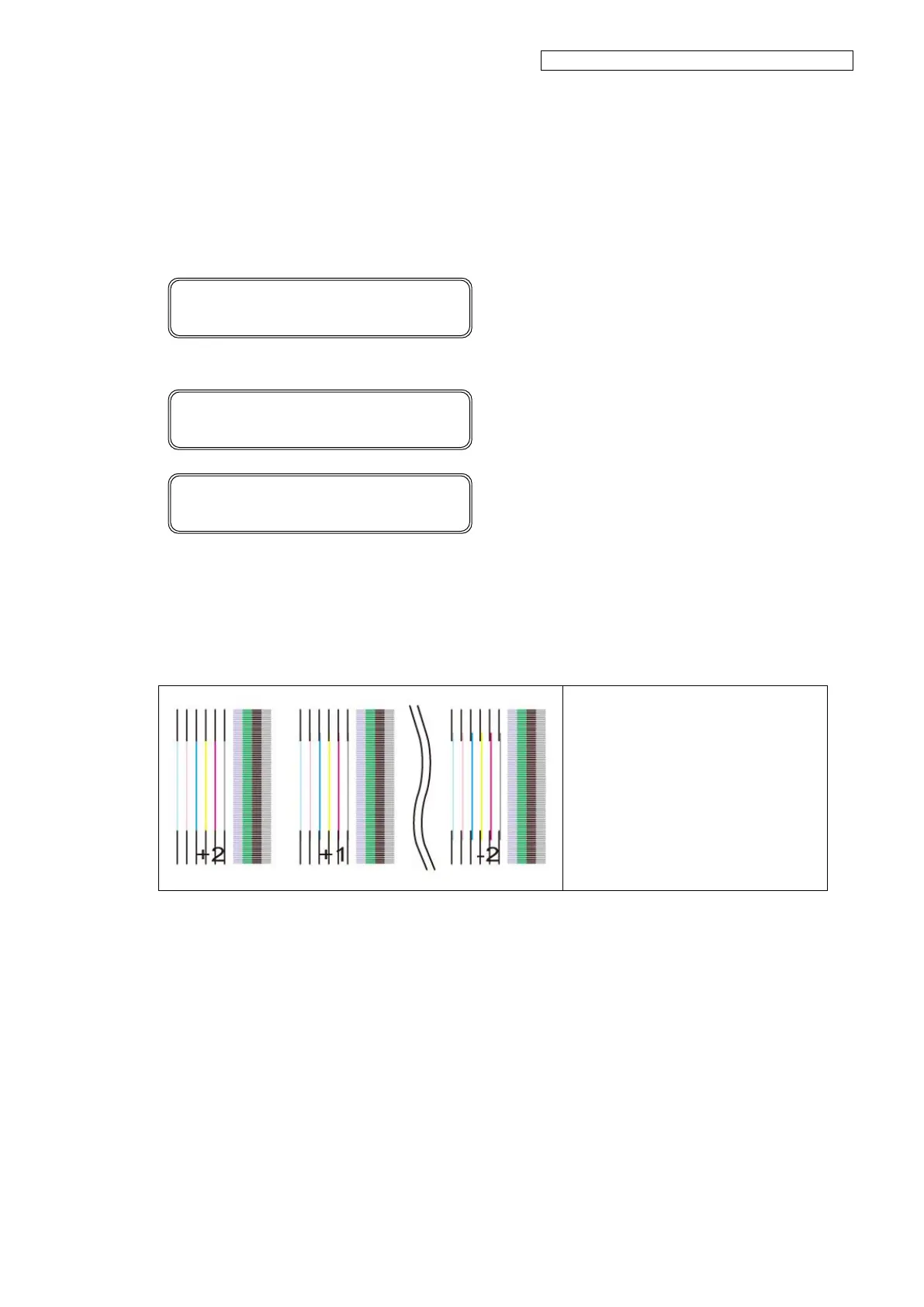

Set the value of the pattern where the
color line is aligned with the K print head
line. For example, the line for Lc is not
aligned for -2 but is aligned for +2, so
the adjustment value to enter is +2.
For each color, as the adjustment value enter the value of the pattern with the lines aligned with
the K print head line.
*No adjustment value is required for K print head as it is used as a standard for the other colors.
Select a digit to modify with the Right and Left buttons, and modify the digit's value with the Up
and Down buttons.
After the value has been modified, press the OK button.
Press the CANCEL button to return to the previous screen without modifying the value.
>>>ENTER PH ADJ VAL
 ±XX±YY ◎
>>>ENTER PH ADJ VAL
 CC : ±XX ◎
>>PH POSITION ADJUST
 ENTER PH ADJ VAL ◎
