Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
86

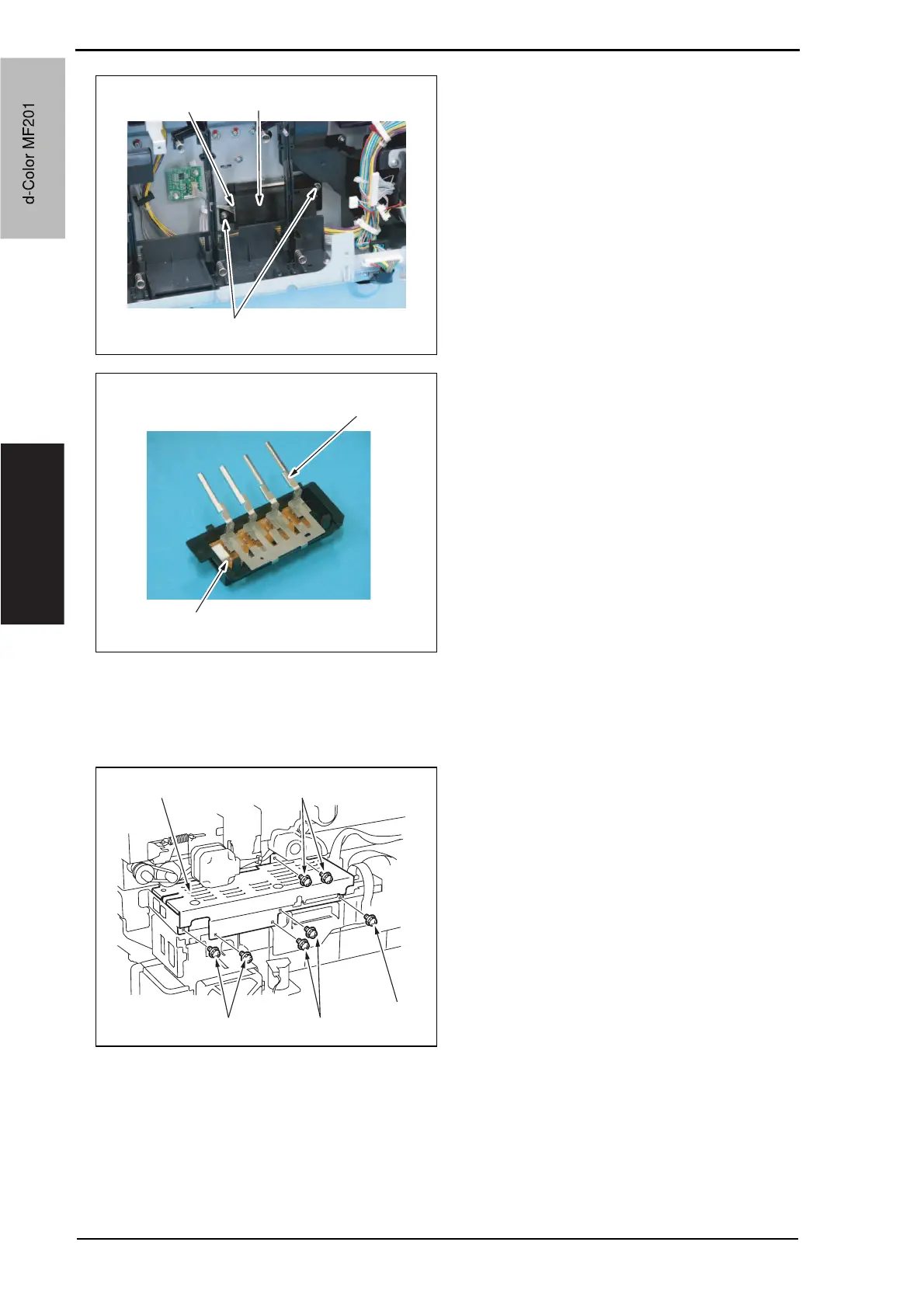

Maintenance
4. Disconnect the connector [1].
5. Remove two screws [2], and remove
the tray 1 FD paper size detect board
assy [3].
6. Remove the lever [1], and remove
the tray 1 FD paper size detect board
[2].
6.3.39 ADCU board (ADCUB)
1. Remove the IR rear cover.
See P.44
2. Remove seven screws [1], and
remove the MFBU shield cover [2].
A02FF2C078DA
[1] [3]
[2]
9J06F2C566DA
[1]
[2]
A02FF2C508DA
[2]
[1]
[1]
[1]
[1]
d-Color MF201
Service Manual Y109660-1
d-Color MF201
