Olivetti d-Color MF201 - Fusing Drive Unit

Field Service Ver. 1.0 Jun. 2008 6. Other
67
Maintenance

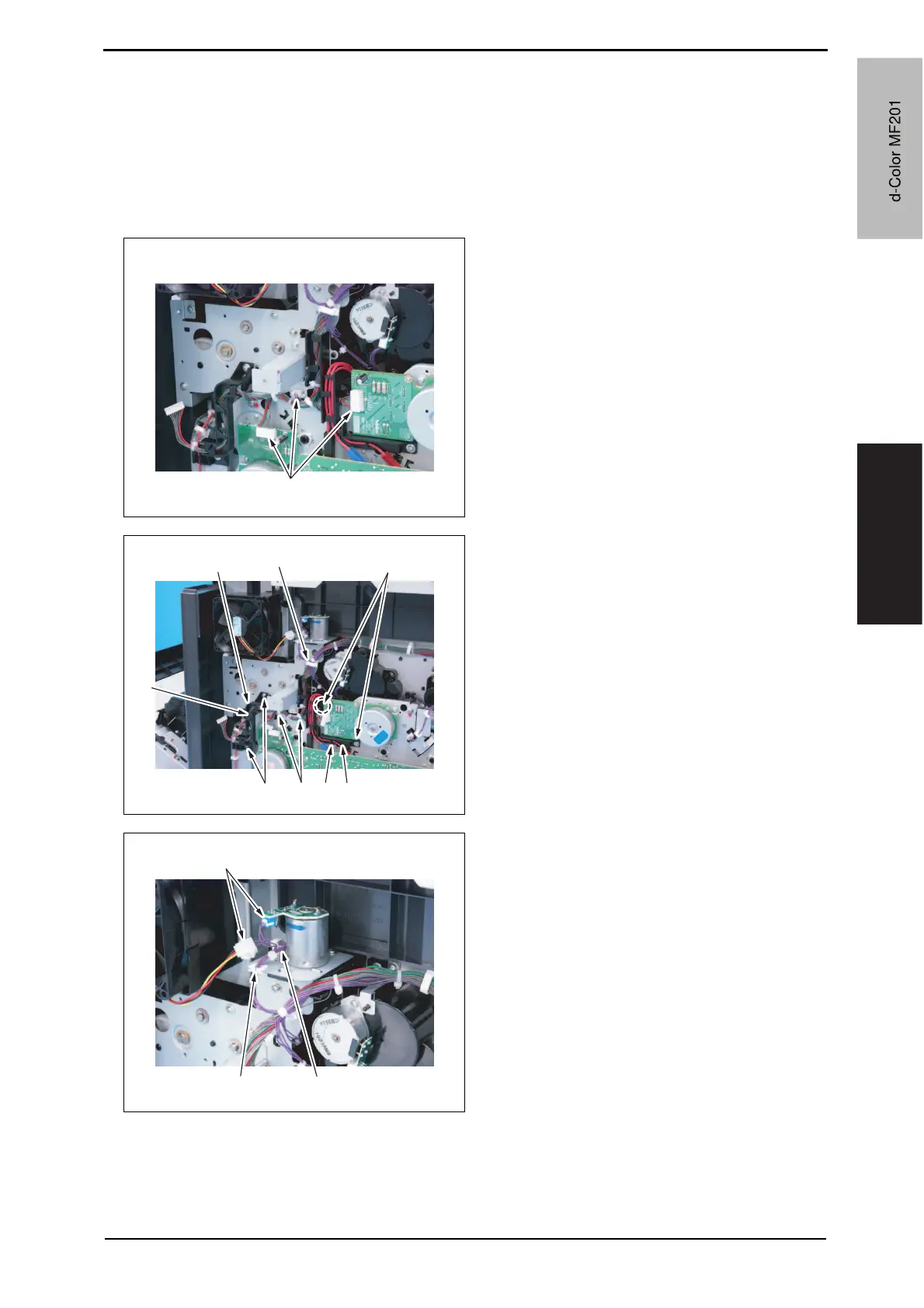

6.3.27 Fusing drive unit
1. Remove the transfer belt unit.
See P.24
2. Remove the fusing unit.
See P.54
3. Remove the fusing motor.
See P.92
4. Disconnect three connectors [1].
5. Remove the harness from three wire
saddles [1] and two harness guides
[2].
6. Remove four screws [3], and remove
two harness guides [4].
7. Disconnect two connectors [1], and
remove the harness from the wire
saddle [2].
8. Remove the harness from the edge
cover [3].
A02FF2C056DA
[1]
A02FF2C057DB
[1][2]
[4]
[3]
[1] [2] [4][3]
A02FF2C058DA
[3] [2]
[1]
