10. Service Mode Field Service Ver. 1.0 Jun. 2008
264
Adjustment / Setting
10.9 Test Mode
• To check the image on the printer side by letting the machine produce various types of
test pattern. It also tests the printing operation in running mode.
• The machine searches through the paper sources in the order of tray 1, tray 2, tray 3,
and tray 4 for paper of the maximum size for printing.
10.9.1 Procedure for test pattern output
1. Touch [Test Mode] to display the test mode menu.
2. Touch the desired test pattern key.
3. Set up the desired functions and press the Start key.

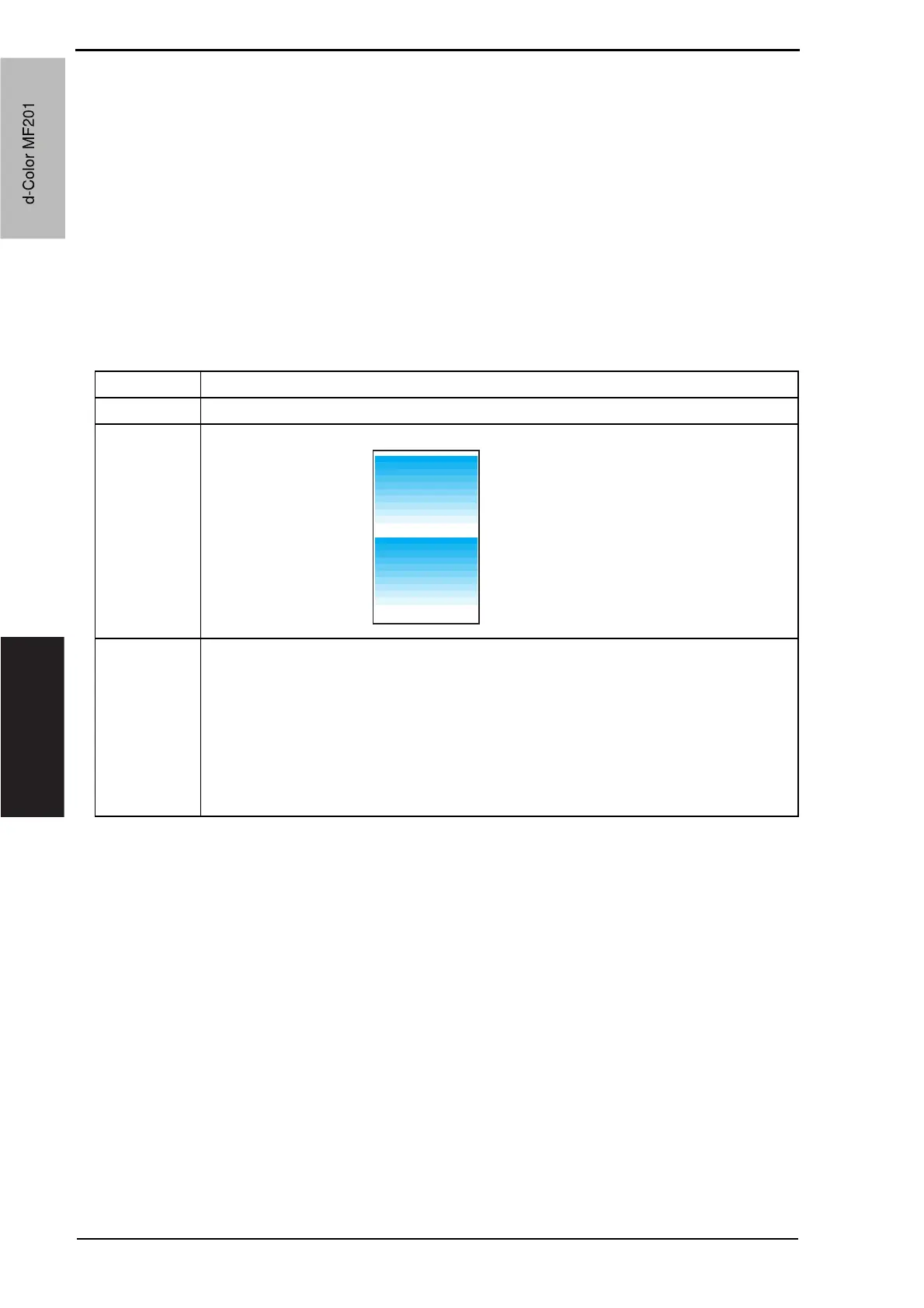

10.9.2 Gradation Pattern
Functions • To produce a gradation pattern.
Use • Used for checking gradation reproducibility.
Pattern
Setting/
Procedure
• Copies (“1” to 999)
• Select “SINGLE” (single copy) or MULTI (multi copy).
• Select FEET or “HYPER”.
• Select “Gradation” or Resolution if HYPER has been selected.
• Select the color mode.
“Cyan”, Magenta, Yellow, Black (4PC), Black (1PC), CMYK, 8 Color
• Black (4PC): Uses four colors.
• Black (1PC): Uses one color of black.
A02EF3C510DA
SINGLE
HYPER
Gradation
Cyan
d-Color MF201
Service Manual Y109660-1
d-Color MF201
