6. Other Field Service Ver. 1.0 Jun. 2008
94
Maintenance

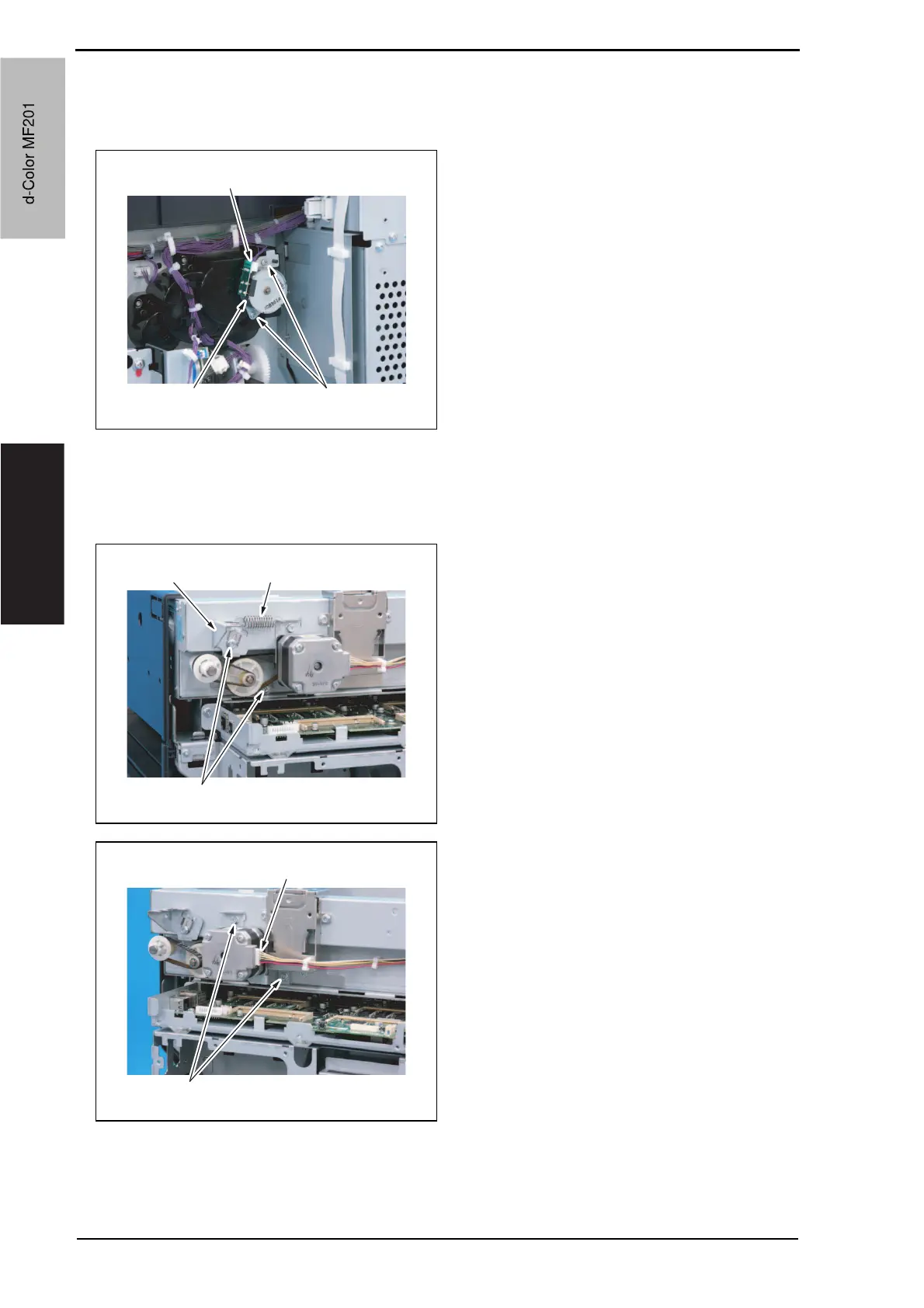

6.3.48 Toner supply motor/YM (M6)
1. Remove the rear cover.
See P.45
2. Disconnect the connector [2],
remove two screws [1], and remove
the toner supply motor/YM [3].
6.3.49 Scanner motor (M201)
1. Remove the IR rear cover.
See P.44
2. Remove the motor spring [1].
3. Loosen two screws [2] of the tension
bracket [3].
4. Pull out the cable connector [1] con-
necting to the motor.
5. Remove two screws [2] which fix the
motor bracket.
A02FF2C084DA
[1]
[2]
[3]
A02FF2C116DA
[1][3]
[2]
A02FF2C117DA
[1]
[2]
d-Color MF201
Service Manual Y109660-1
