Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
369
Appendix

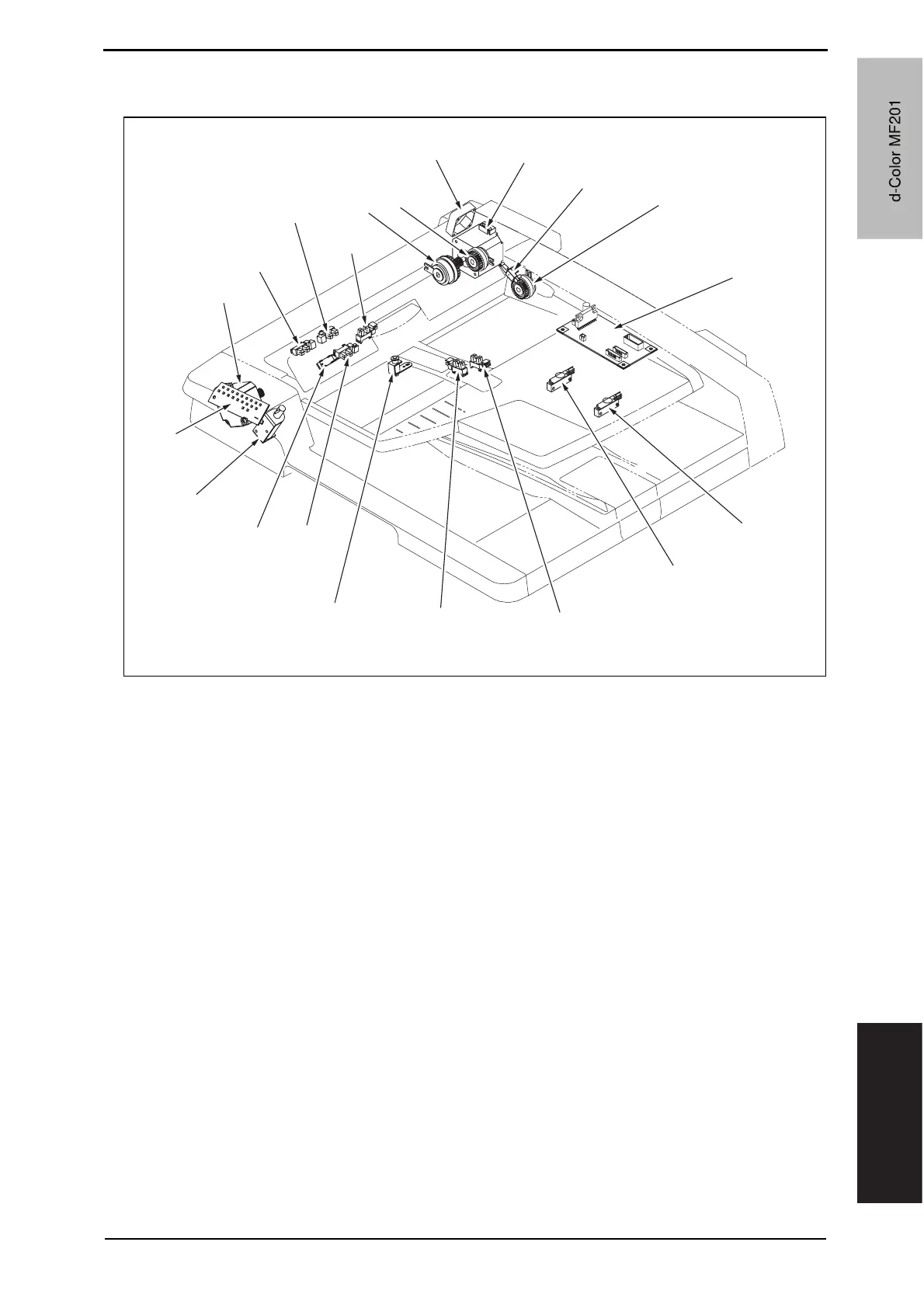

20.2 DF-612 (option)
[1] Take-up motor (M1) [11] Registration sensor (PS8)
[2] Door open/close sensor (PS10) [12] Exit roller retraction solenoid (SD1)
[3] Exit/turnover clutch (CL3) [13] Print lamp board (PLB)
[4] DF control board (DFCB) [14] Transport motor (M2)
[5] Document length sensor/2 (PS6) [15] Document width sensor/1 (PS2)
[6] Document length sensor/1 (PS5) [16] Document empty sensor (PS1)
[7] Document width sensor/3 (PS4) [17] Transport sensor (PS7)
[8] Document width sensor/2 (PS3) [18] Registration clutch (CL2)
[9] Stamp solenoid (SD2) [19] Take-up clutch (CL1)
[10] Exit/turnover sensor (PS9) [20] Cooling fan (FM1)
A0EYF5C500DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
