Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
48
Maintenance

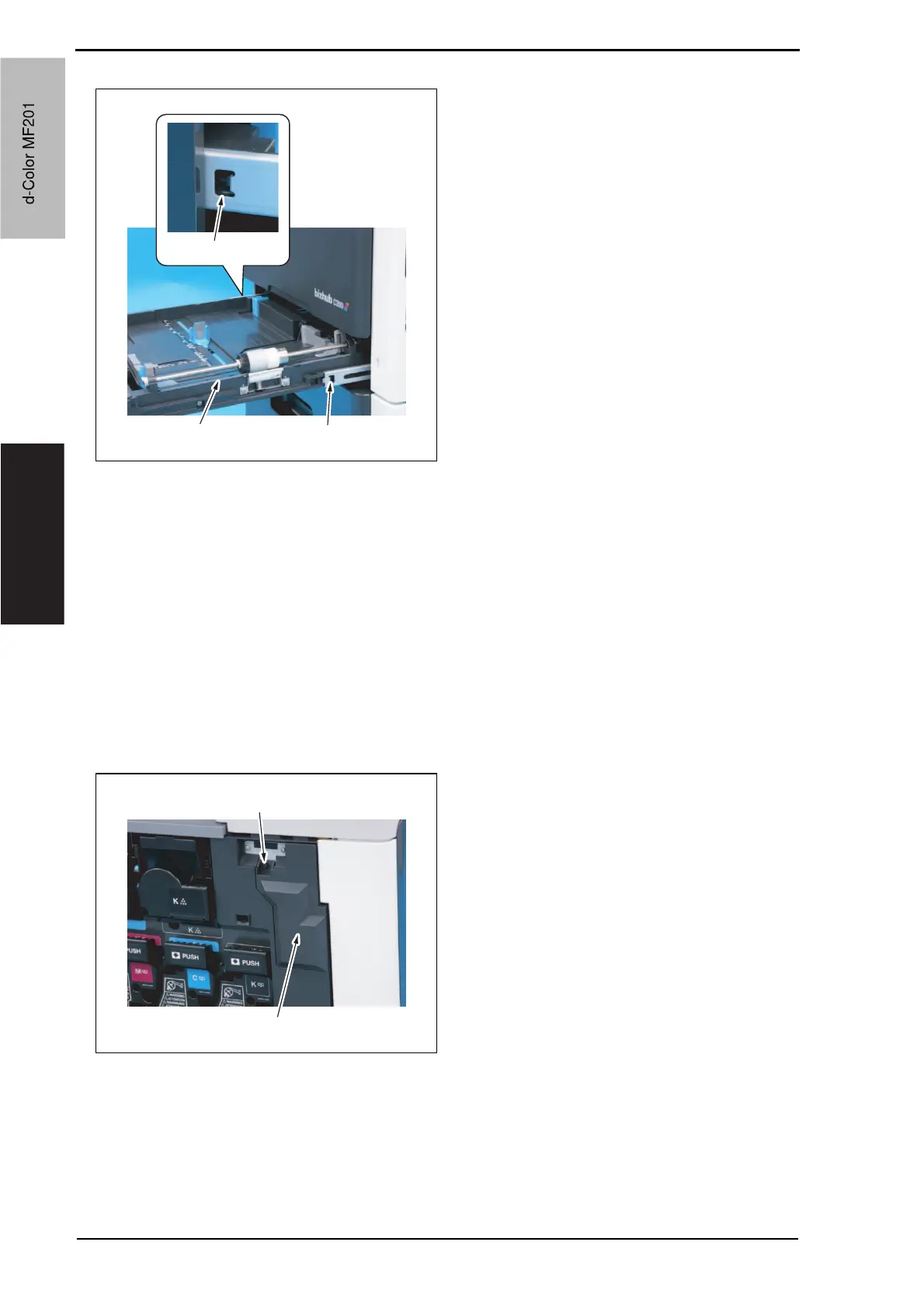

4. Pushing the slide locks [1] on both
ends, remove the tray 1 [2].
6.3.15 Front cover
1. Slide out the tray 1.
2. Remove the front door.
See P.40
3. Remove the left cover.
See P.42
4. Remove the toner cartridges (C, M, Y, K).
See P.22
5. Remove the waste toner box.
See P.16
6. Remove the imaging units (C, M, Y, K).
See P.18
7. Remove the screw [1], and remove
the connector protective cover [2].
A02FF2C030DA
[1]
[1]
[2]
A02FF2C035DA
[1]
[2]
d-Color MF201
Service Manual Y109660-1
