Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
96
Maintenance

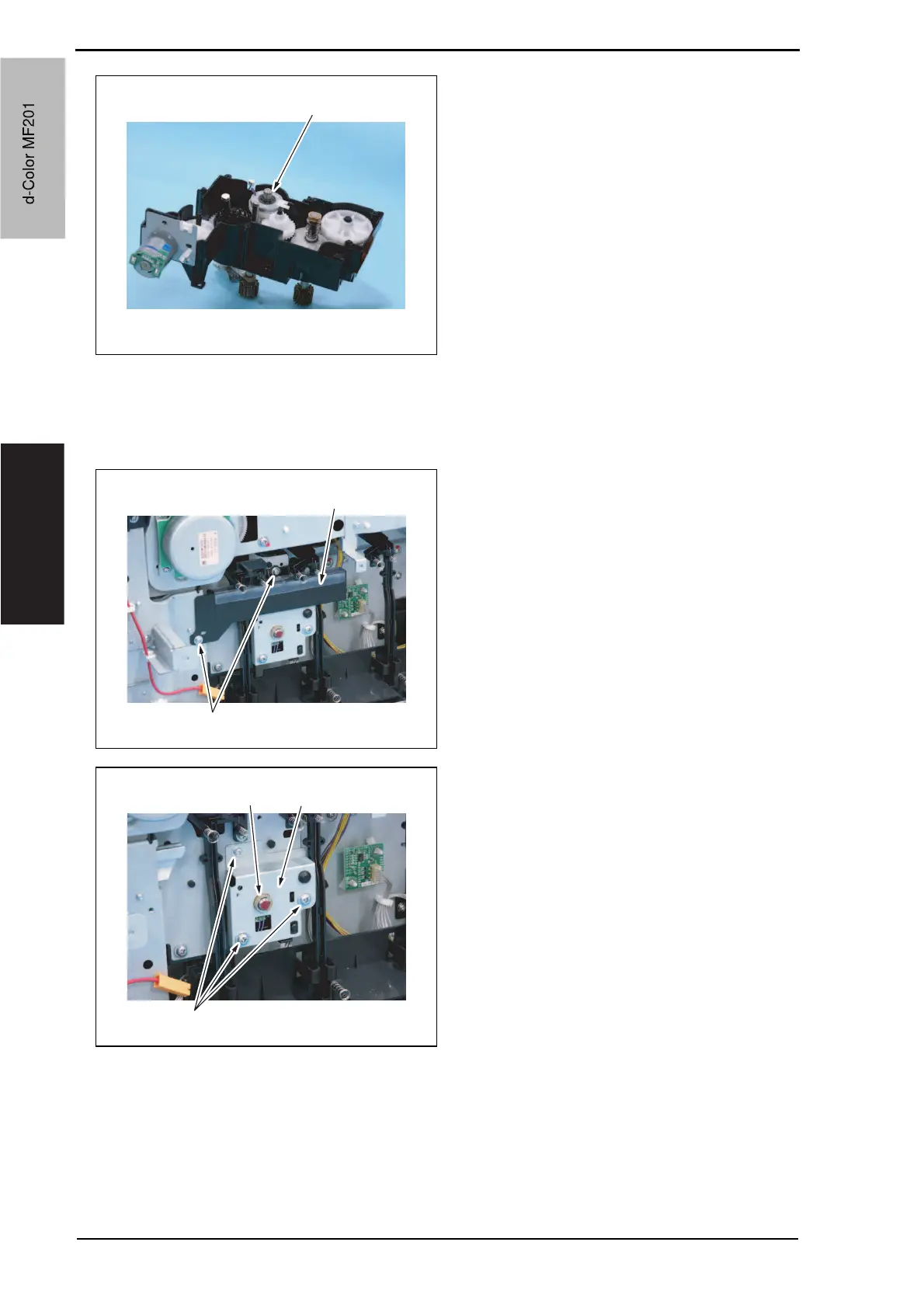

3. Remove the transfer belt pressure
retraction clutch [1].
6.3.51 Developing clutch/K (CL4)
1. Remove the high voltage unit.
See P.85
2. Remove two screws [1], and remove
the rear handle cover [2].
3. Remove three screws [1] and the E-
ring [2], and remove the developing
clutch/K cover [3].
A02EF2C196DA
[1]
A02FF2C086DA
[1]
[2]
A02FF2C087DA
[1]
[2] [3]
d-Color MF201
Service Manual Y109660-1
