Olivetti d-Color MF201 - Tray 1 Separation Roller Assy

Field Service Ver. 1.0 Jun. 2008 6. Other
53
Maintenance

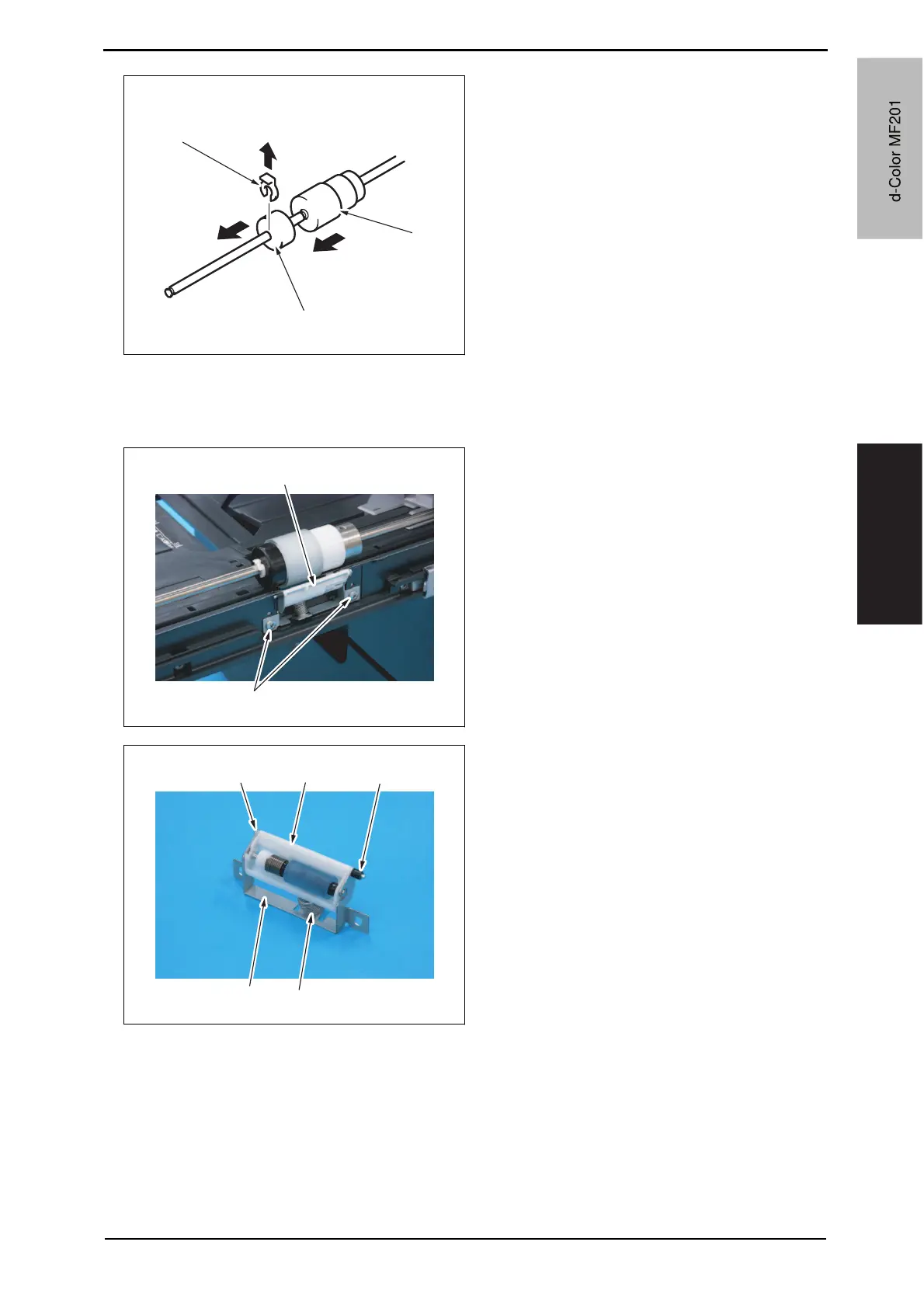

5. Remove two C-clips [1] and the col-
lar [2], and remove the tray 1 feed
roller [3].
6.3.22 Tray 1 separation roller assy
1. Slide out the tray 1.
2. Remove two screws [1], and remove
the tray 1 separation roller fixing
plate assy [2].
3. Take off the rubber stopper [1], shaft
[2], spring [3], and guide plate [4] to
remove the separation roller fixing
bracket assy [5].
9J06F2C501DA
[1]
[3]
[2]
A02FF2C032DA
[1]
[2]
A02FF2C033DA
[1][2] [5]
[4] [3]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
