Maintenance

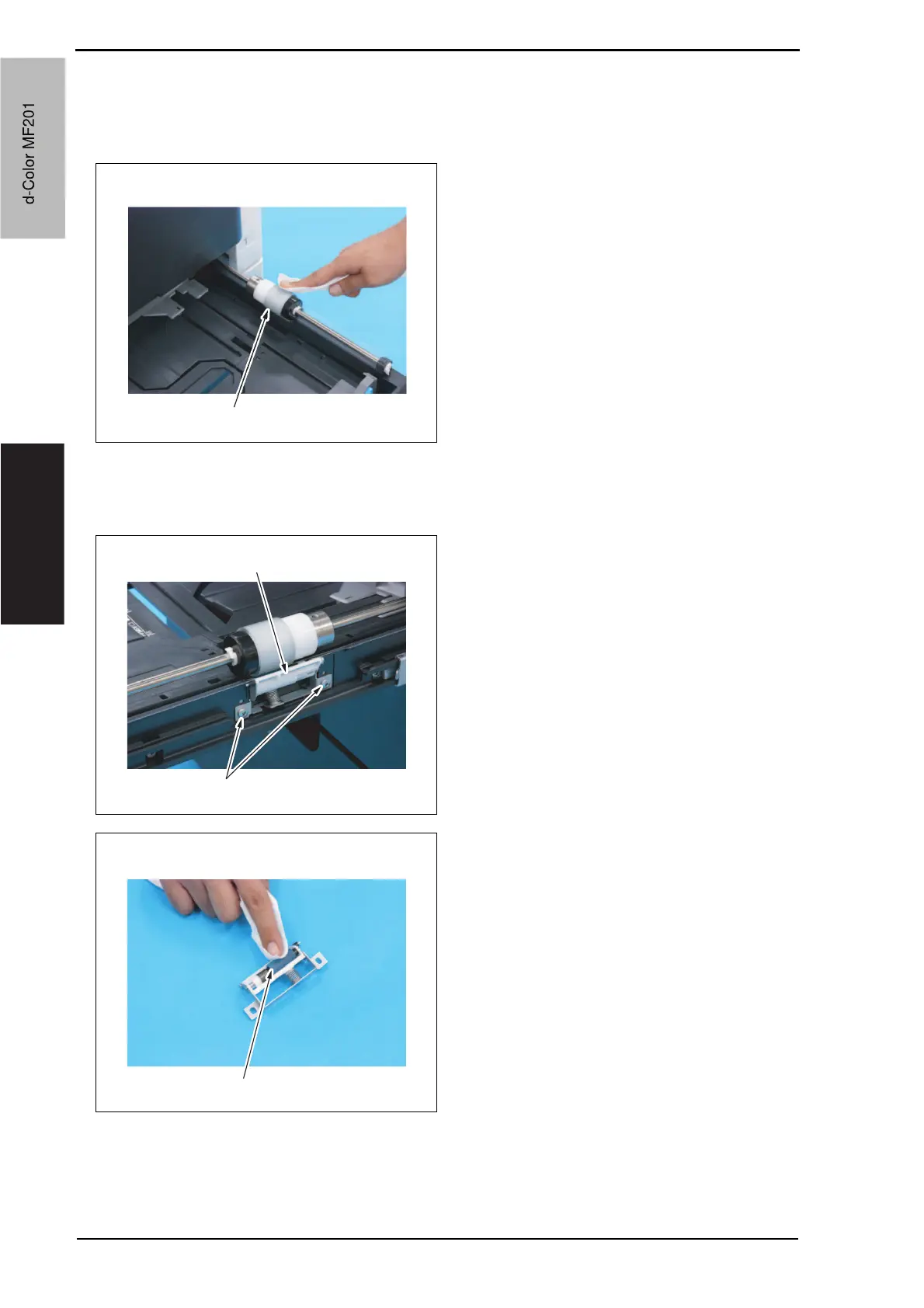

6.4.3 Tray 1 feed roller
1. Slide out the tray 1.
2. Using a cleaning pad dampened with
alcohol, wipe the tray 1 feed roller [1]
clean of dirt.
6.4.4 Tray 1 separation roller
1. Slide out the tray 1.
2. Remove two screws [1], and remove
the tray 1 separation roller fixing
plate assy [2].
3. Using a cleaning pad dampened with
alcohol, wipe the tray 1 separation
roller [1] clean of dirt.
A02FF2C095DA
[1]
A02FF2C032DA
[1]
[2]
A02FF2C096DA
[1]
