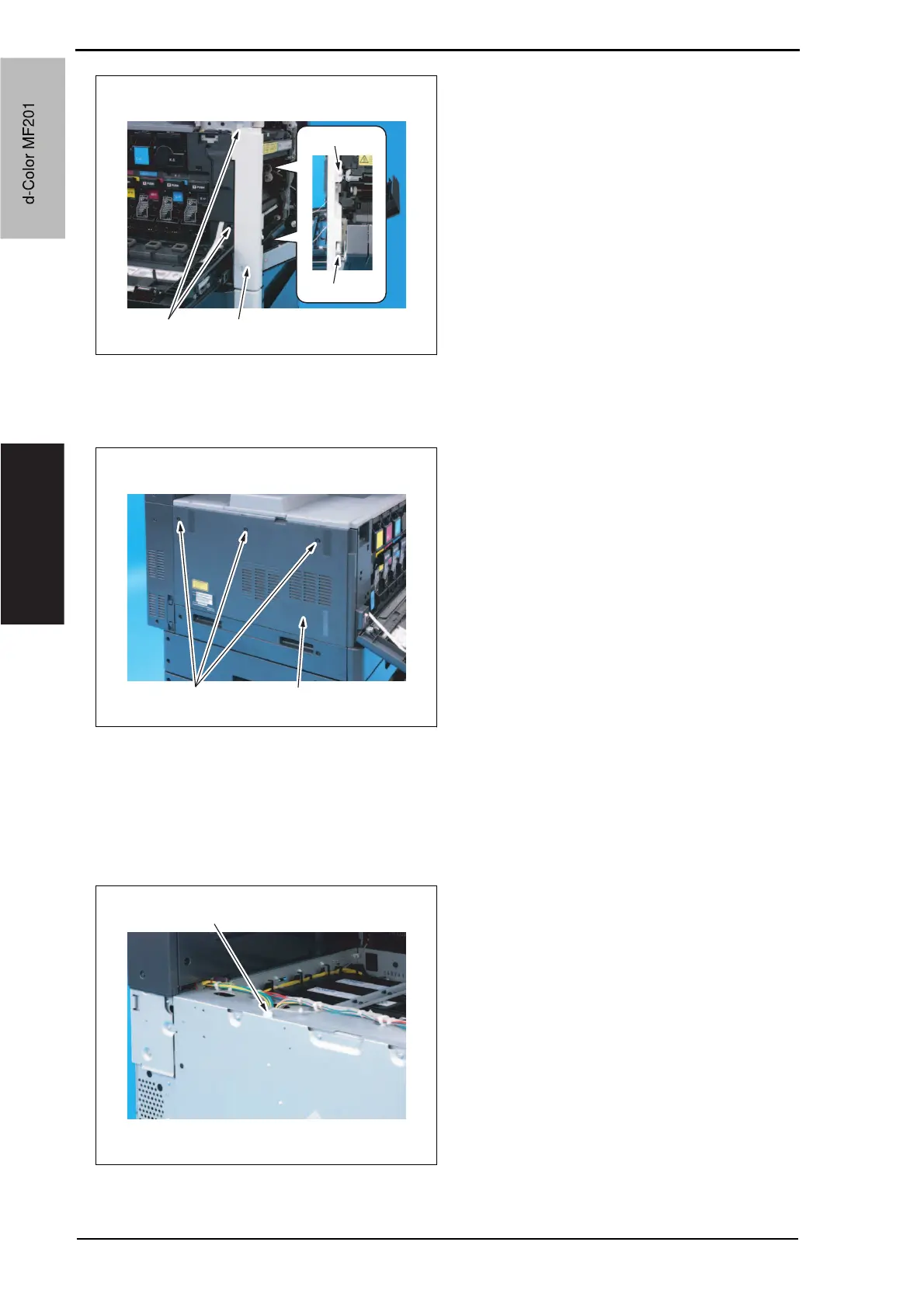

Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
42
Maintenance
5. Remove four screws [1], and remove
the right front cover [2].
6.3.4 Left cover
1. Open the front door.
2. Remove three screws [1], and
remove the left cover [2].
6.3.5 Left shield cover
1. Remove the exit tray.
See P.47
2. Remove the rear left cover.
See P.43
3. Disconnect the connector [1].
A02FF2C016DA
[1] [2]
[1]
[1]
A02FF2C017DA
[1] [2]
A02FF2C018DA
[1]
d-Color MF201
Service Manual Y109660-1
