6.3.34 DC power supply (DCPU)

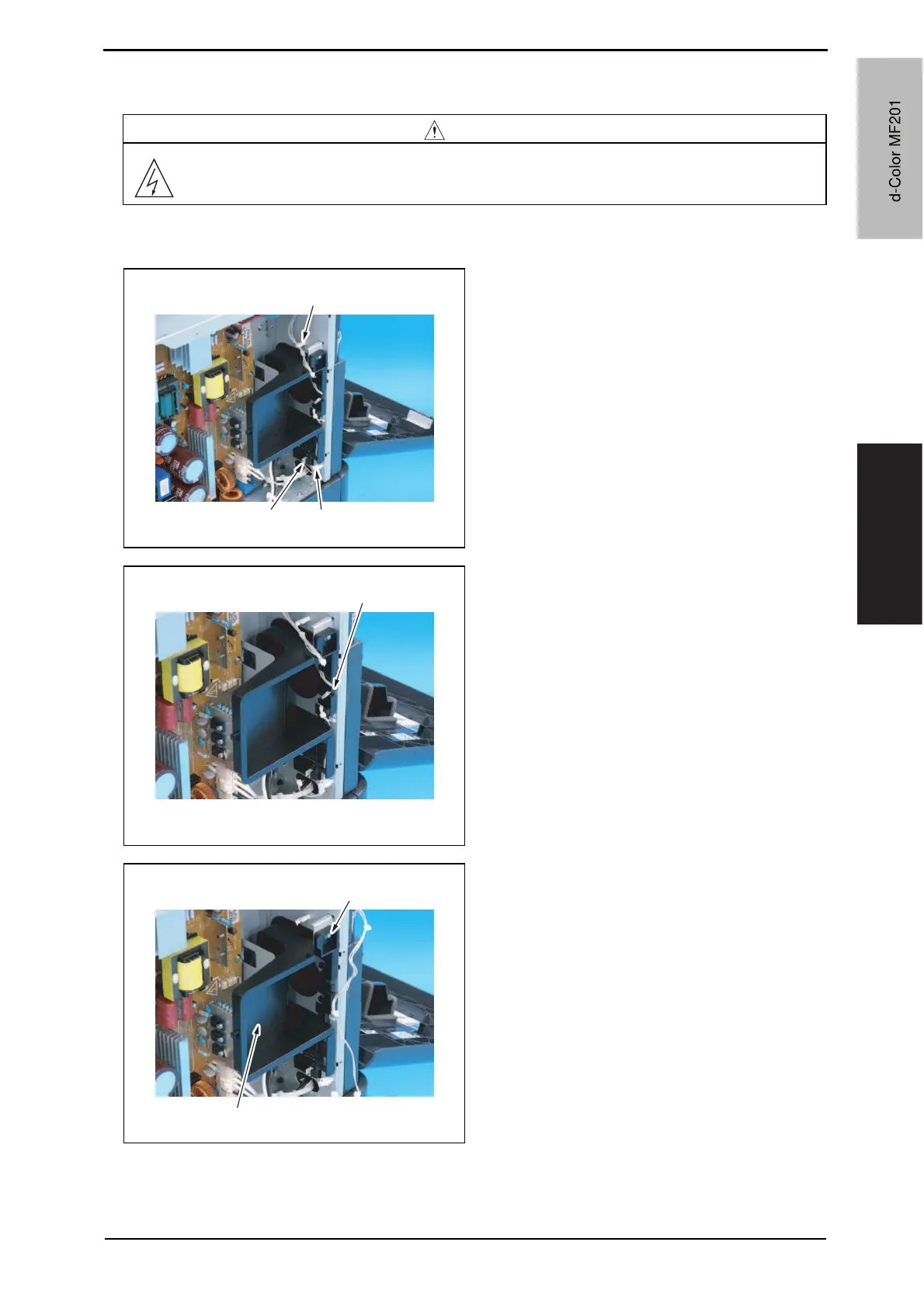

1. Remove the left shield cover.
See P.42
2. Disconnect the connector [1], and
remove the harness from two wire
saddles [2].
3. Remove the harness from the har-
ness guide [1].
4. Remove the screw [1], and remove
the duct [2] while moving it toward
front.
CAUTION
• Remove the DC power supply after six minutes or more have passed
since the power plug was disconnected.
A02FF2C067DA
[1] [2]
[2]
A02FF2C068DA
[1]
A02FF2C069DA
[2]
[1]
