Olivetti d-Color MF201 - Fusing Pressure Roller Retraction Motor (M12); Toner Supply Motor;Ck (M7)

Field Service Ver. 1.0 Jun. 2008 6. Other
93
Maintenance

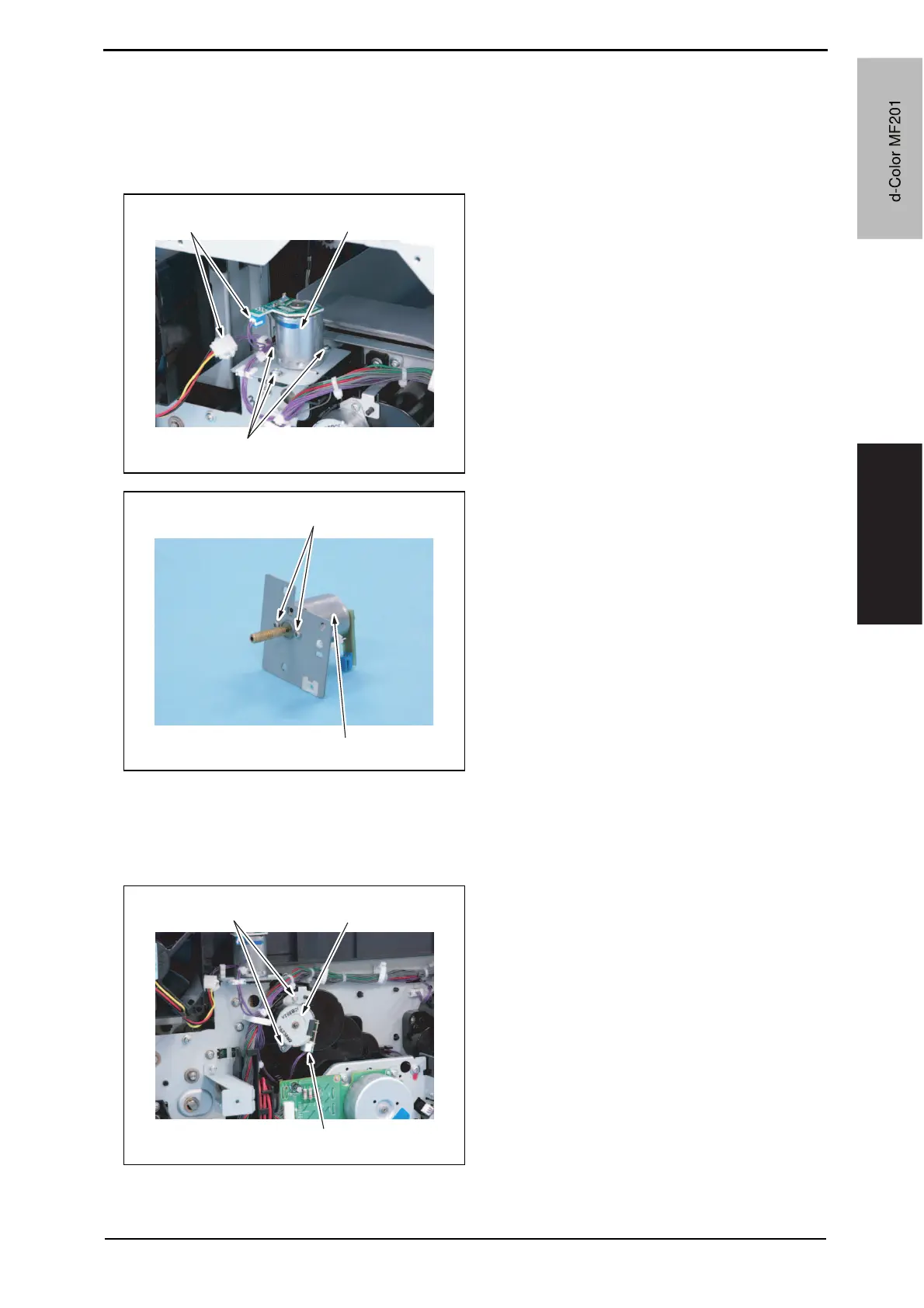

6.3.46 Fusing pressure roller retraction motor (M12)
1. Remove the paper exit rear cover.
See P.44
2. Remove the rear cover.
See P.45
3. Disconnect two connectors [1].
4. Remove three screws [2], and
remove the fusing pressure roller
retraction motor assy [3].
5. Remove two screws [1], and remove
the fusing pressure roller retraction
motor [2].
6.3.47 Toner supply motor/CK (M7)
1. Remove the rear cover.
See P.45
2. Disconnect the connector [2],
remove two screws [1], and remove
the toner supply motor/CK [3].
A02FF2C082DA
[1] [3]
[2]
A02EF2C178DA
[1]
[2]
A02FF2C083DA
[1] [3]
[2]
