Field Service Ver. 1.0 Jun. 2008 6. Other
45
Maintenance

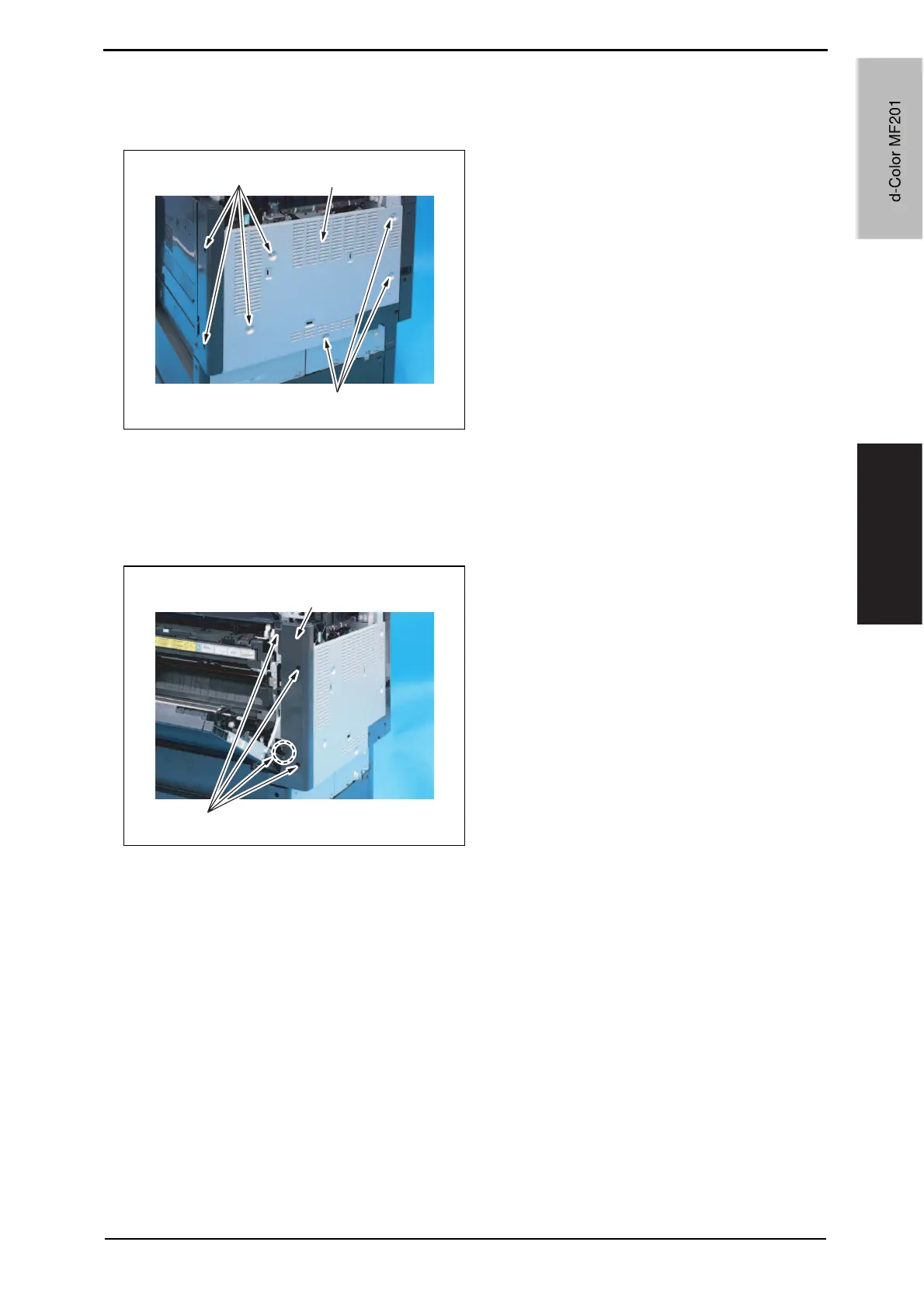

6.3.10 Rear cover
1. Remove the IR rear cover.
See P.44
2. Remove seven screws [1], and
remove the rear cover [2].
6.3.11 Rear right cover
1. Open the right door.
2. Remove the IR rear cover.
See P.44
3. Remove four screws [1], and remove
the rear right cover [2].
A02FF2C023DA
[1]
[1] [2]
A02FF2C024DA
[1]
[2]
d-Color MF201
Y109660-1 Sevice Manual
