Olivetti d-Color MF201 - Color PC Motor (M3); Fusing Motor (M2)

6. Other Field Service Ver. 1.0 Jun. 2008
92
Maintenance

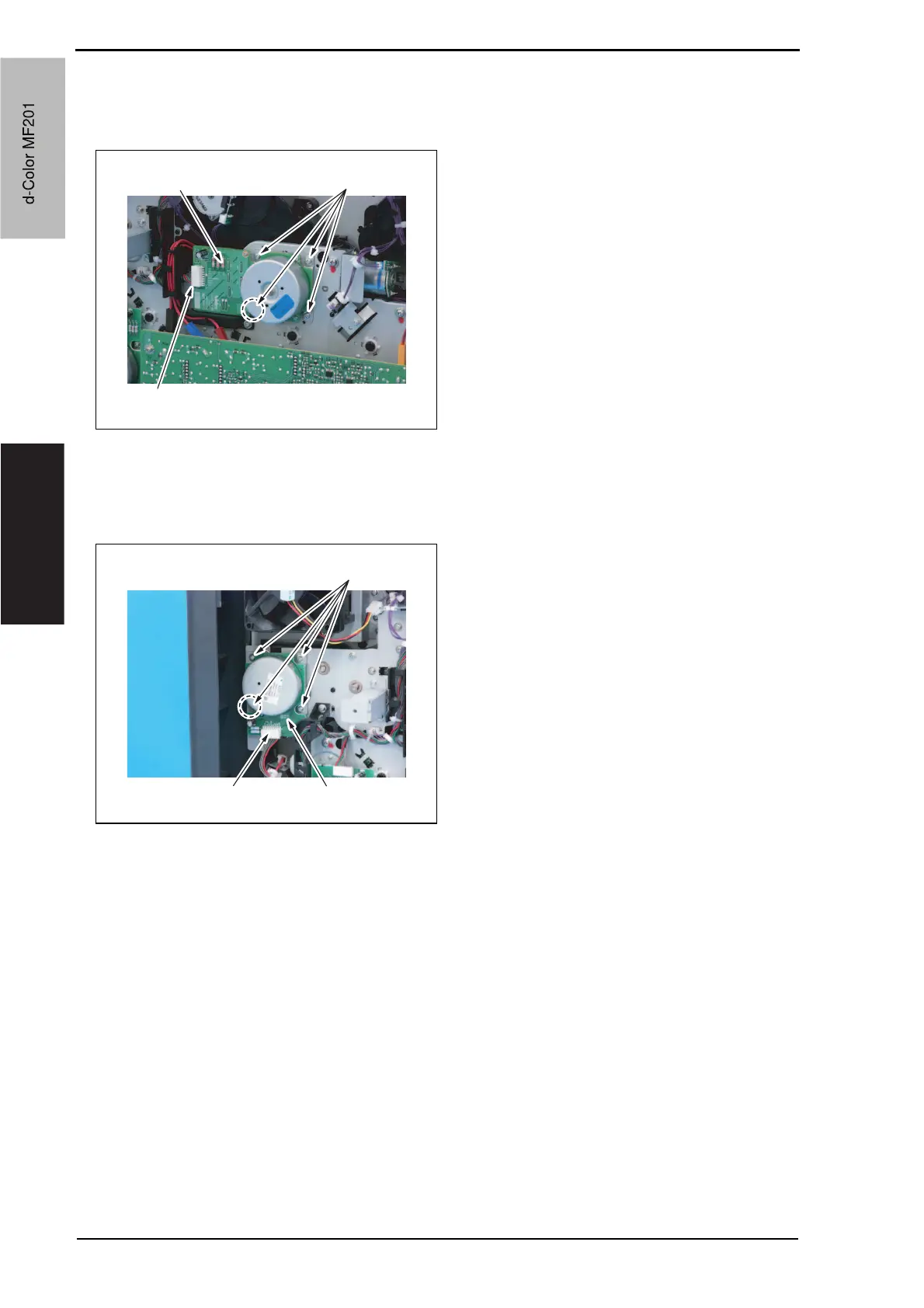

6.3.44 Color PC motor (M3)
1. Remove the rear cover.
See P.45
2. Remove four screws [1], disconnect
the connector [2], and remove the
color PC motor [3].
6.3.45 Fusing motor (M2)
1. Remove the rear cover.
See P.45
2. Remove four screws [1], disconnect
the connector [2], and remove the
fusing motor [3].
A02FF2C080DA
[1][3]
[2]
A02FF2C081DA
[1]
[2] [3]
d-Color MF201
Service Manual Y109660-1
d-Color MF201
