Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 6. Other
91
Maintenance

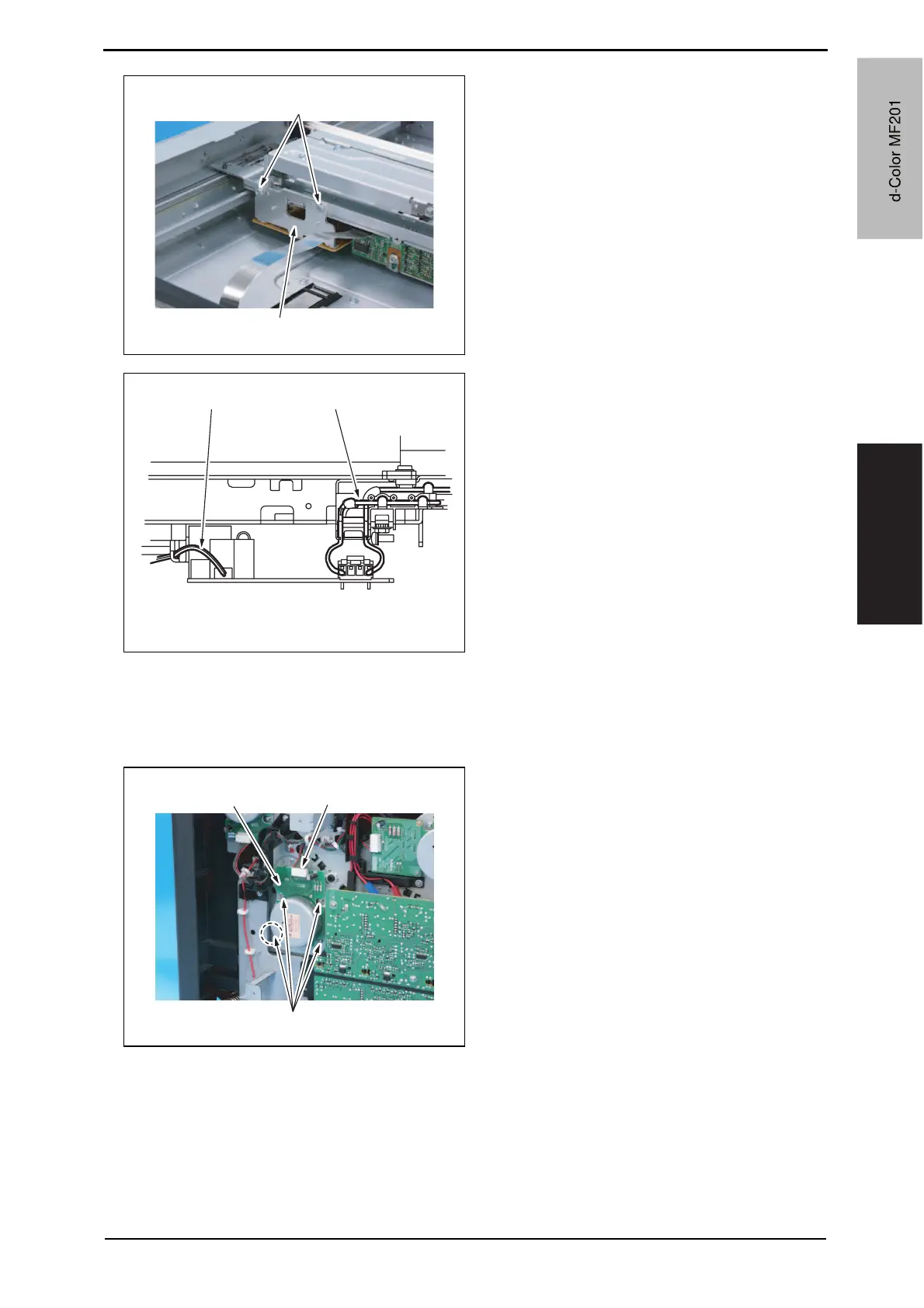

6. Remove two screws [1], and remove
the inverter board [2].
7. To reinstall, reverse the order of
removal.
NOTE
• Take note of the housing method of
the two cables [1] of the inverter
board.
6.3.43 Transport motor (M1)
1. Remove the rear cover.
See P.45
2. Remove four screws [1], disconnect
the connector [2], and remove the
transport motor [3].
A02FF2C126DA
[1]
[2]
A02FF2C516DA
[1][1]
A02FF2C079DA
[1]
[2][3]
d-Color MF201
Y109660-1 Sevice Manual
