Olivetti d-Color MF201 - PC-104;204 (Option)

20. Parts layout drawing Field Service Ver. 1.0 Jun. 2008
372
Appendix

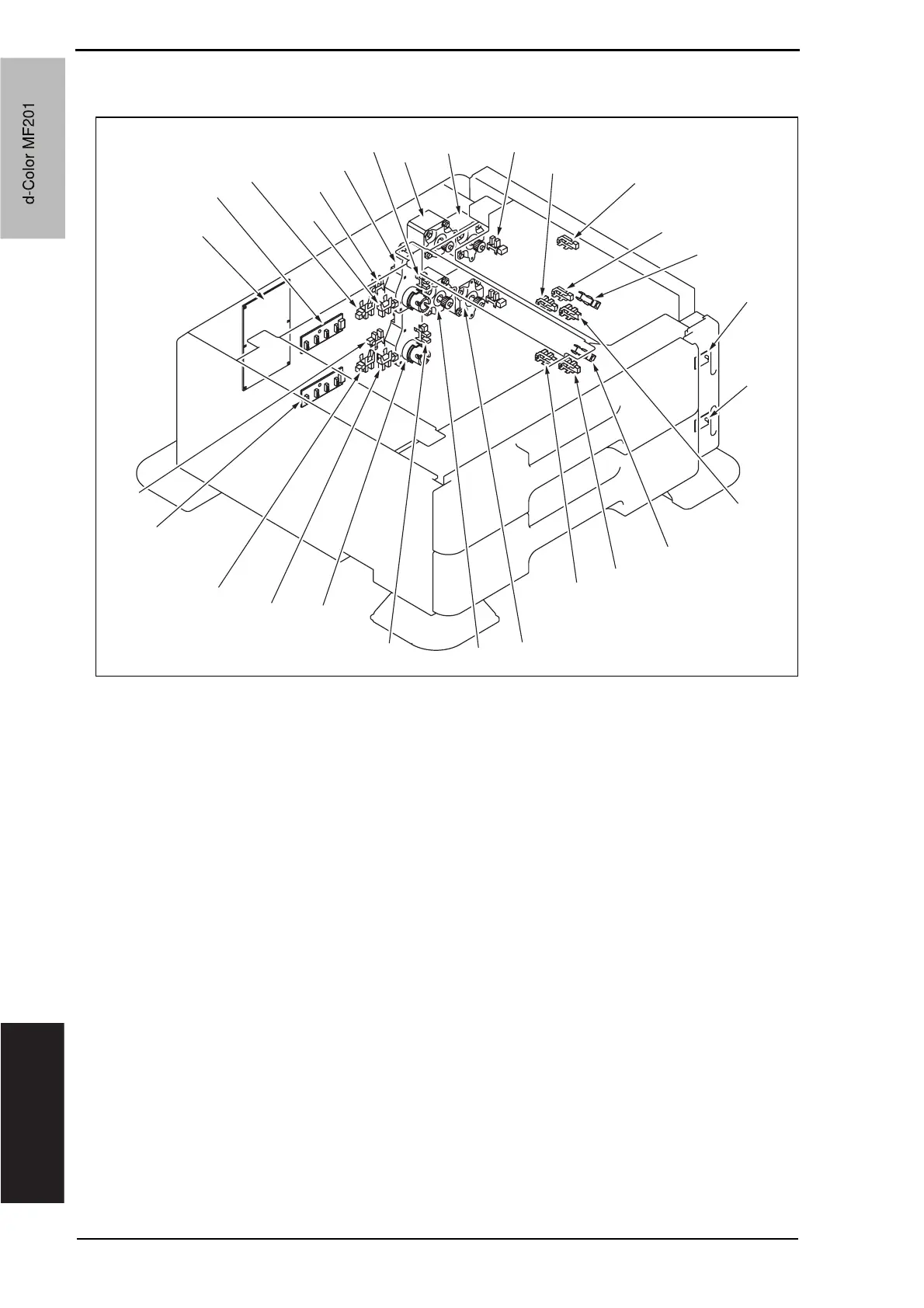

20.5 PC-104/204 (option)
[1] Tray3 door set sensor (PS111) [15] Tray4 lift-up motor (M125)
[2] Tray3 upper limit sensor (PS114) [16] Tray4 CD paper size sensor/2 (PS128)
[3] Tray3 vertical transport sensor (PS117) [17] Tray4 CD paper size sensor/1 (PS127)
[4] Tray4 vertical transport sensor (PS126) [18] Tray4 paper size detect board/2
(PSDTB/2)
[5] Tray3 paper feed sensor (PS116) [19] Tray4 device detection sensor (PS121)
[6] Paper feed tray3 paper empty indicator board
(PEIB/1)
[20] PC Control board (PCCB)
[7] Paper feed tray4 paper empty indicator board
(PEIB/2)
[21] Tray3 paper size detect board/1
(PSDTB/1)
[8] Tray3 empty sensor (PS115) [22] Tray3 CD paper size sensor/1 (PS118)
[9] Tray4 paper feed sensor (PS125) [23] Tray3 CD paper size sensor/2 (PS119)
[10] Tray4 empty sensor (PS124) [24] Tray3 device detection sensor (PS112)
[11] Tray4 upper limit sensor (PS123) [25] Tray3 lift-up motor (M124)
[12] Tray4 vertical transport motor (M121) [26] Tray3 near empty sensor (PS113)
[13] Tray4 paper feed motor (M123) [27] Tray3 paper feed motor (M122)
[14] Tray4 near empty sensor (PS122) [28] Tray3 vertical transport motor (M120)
A093F5E502DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
