Olivetti d-Color MF201 Service Manual

10. Service Mode Field Service Ver. 1.0 Jun. 2008
258
Adjustment / Setting

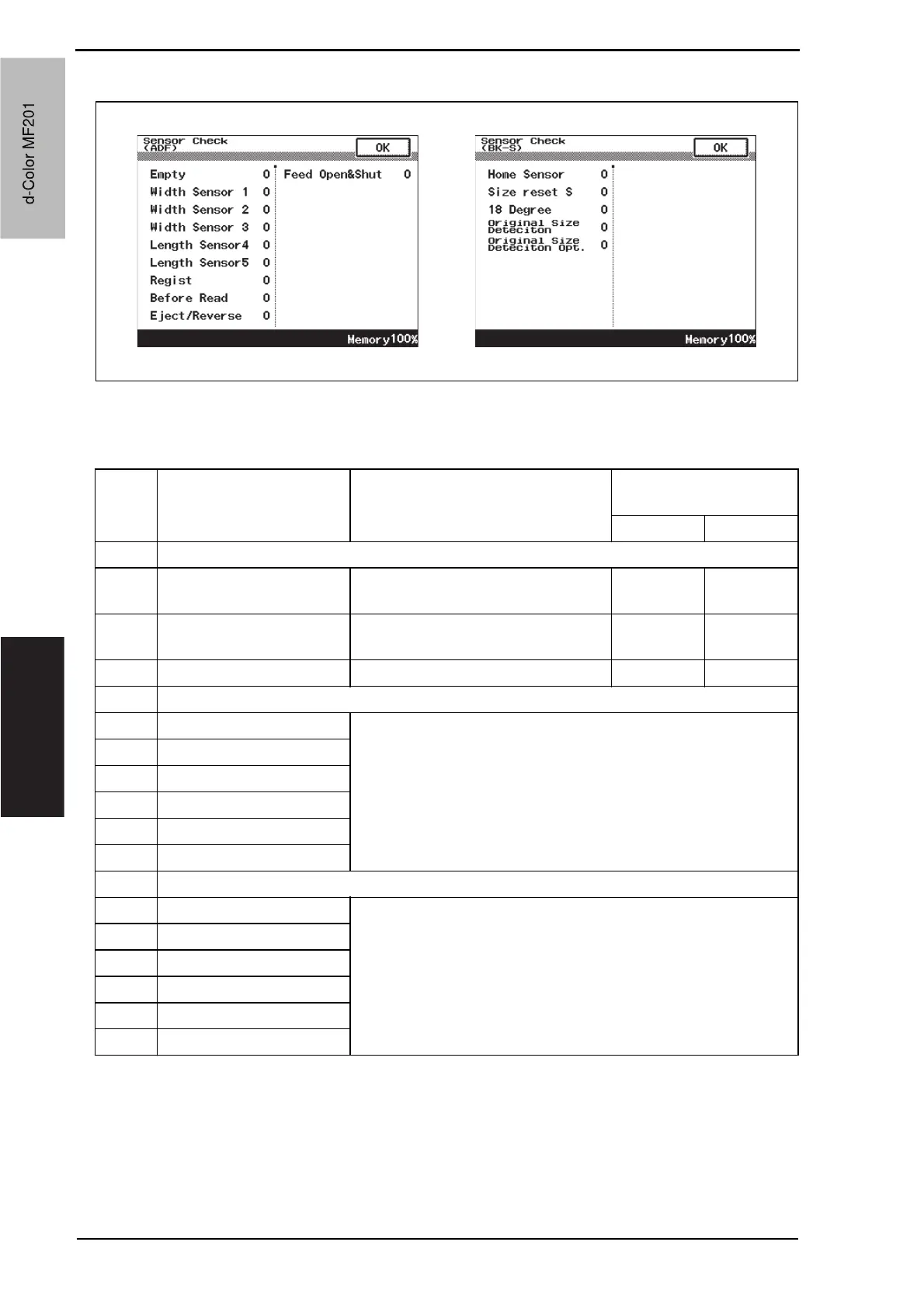

B. Sensor Check (Scan)
10.8.3 Sensor check list
A. Sensor Check
A02FF3E519DA
Symbol Panel display Part/signal name
Operation characteristics/
panel display
10
Paper feed tray 1
PS12 Device detection Tray 1 device detection sensor In position
Out of
position
PS10 Paper Empty Tray 1 paper empty sensor
Paper not
present
Paper
present
PS11 Paper Near Empty Tray 1 near empty sensor Near empty Unblocked
Paper feed tray 2
PS2 Device detection See P.24 of the PC-105 service manual.
PS6 Paper Empty
PS1 Paper Near Empty
PS8 Vertical Transport
PS9 Feed
PS7 Raised (Lift-Up)
Paper feed tray 3
PS112 Device detection See P.19 of the PC-104/204 service manual.
PS115 Paper Empty
PS113 Paper Near Empty
PS117 Vertical Transport
PS116 Feed
PS114 Raised (Lift-Up)
