Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
375
Appendix

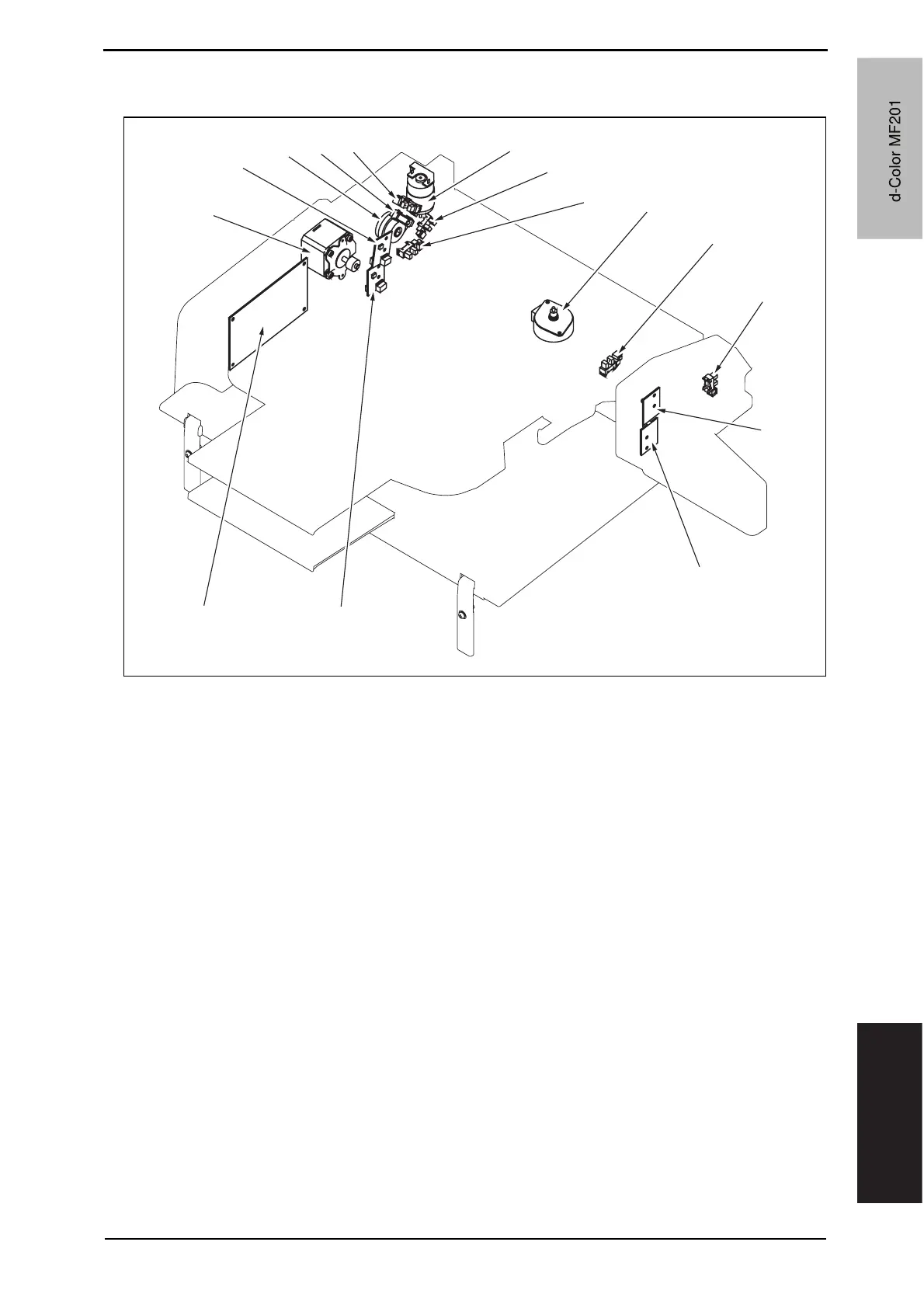

20.8 JS-505 (option)
[1] Route change motor (M3) [9] Lower tray paper full detect board/PR
(T1FDTB/PR)
[2] Route change home sensor (PS4) [10] JS control board (JSCB)
[3] Pressure/retraction home sensor (PS5) [11] Transport Motor (M1)
[4] Shift motor (M2) [12] Upper tray paper full detect board/PR
(T2FDTB/PR)
[5] Shift home sensor (PS6) [13] Roller pressure/retraction clutch (CL1)
[6] Front door sensor (PS3) [14] Lower tray exit sensor (PS1)
[7] Upper tray paper full detect board/LED
(T2FDTB/LED)
[15] Upper tray exit sensor (PS2)
[8] Lower tray paper full detect board/LED
(T1FDTB/LED)
A083F5C500DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
d-Color MF201
Y109660-1 Sevice Manual
