Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
40
Maintenance
6.3 Disassembly/assembly procedure
6.3.1 Front door

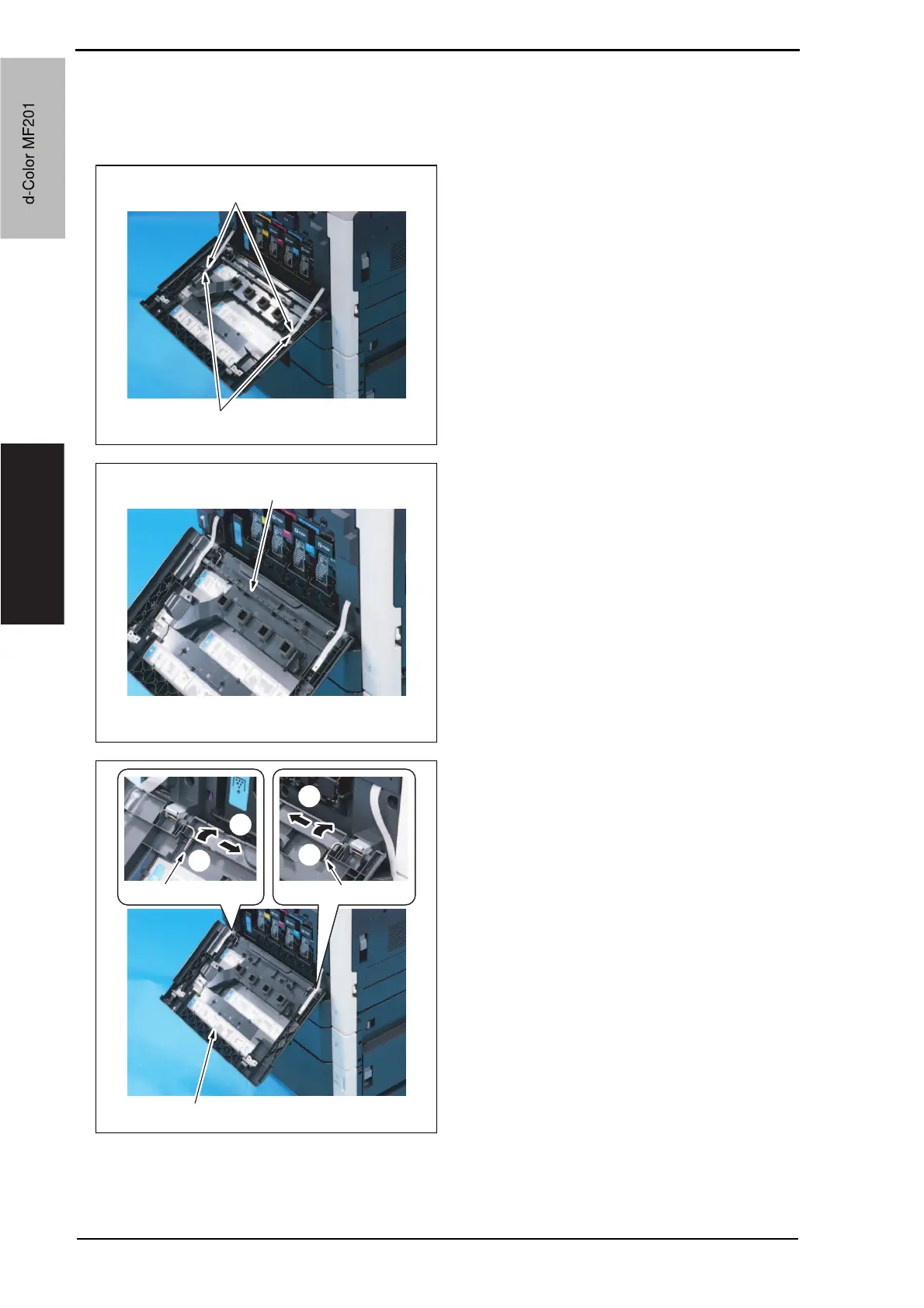

1. Open the front door.
2. Remove two screws [1] and the sup-
pression plate [2].
3. Remove the PH window cleaning jig
[1].
4. Slide the pins [1] in the direction of
the arrow and remove it.
5. Remove the front door [2].
A02FF2C011DA
[1]
[2]
A02FF2C012DA
[1]
A02FF2C013DA
[2]
[1]
[1]
Ԙ
Ԙ
ԙ
ԙ
d-Color MF201
Service Manual Y109660-1
