Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
52
Maintenance

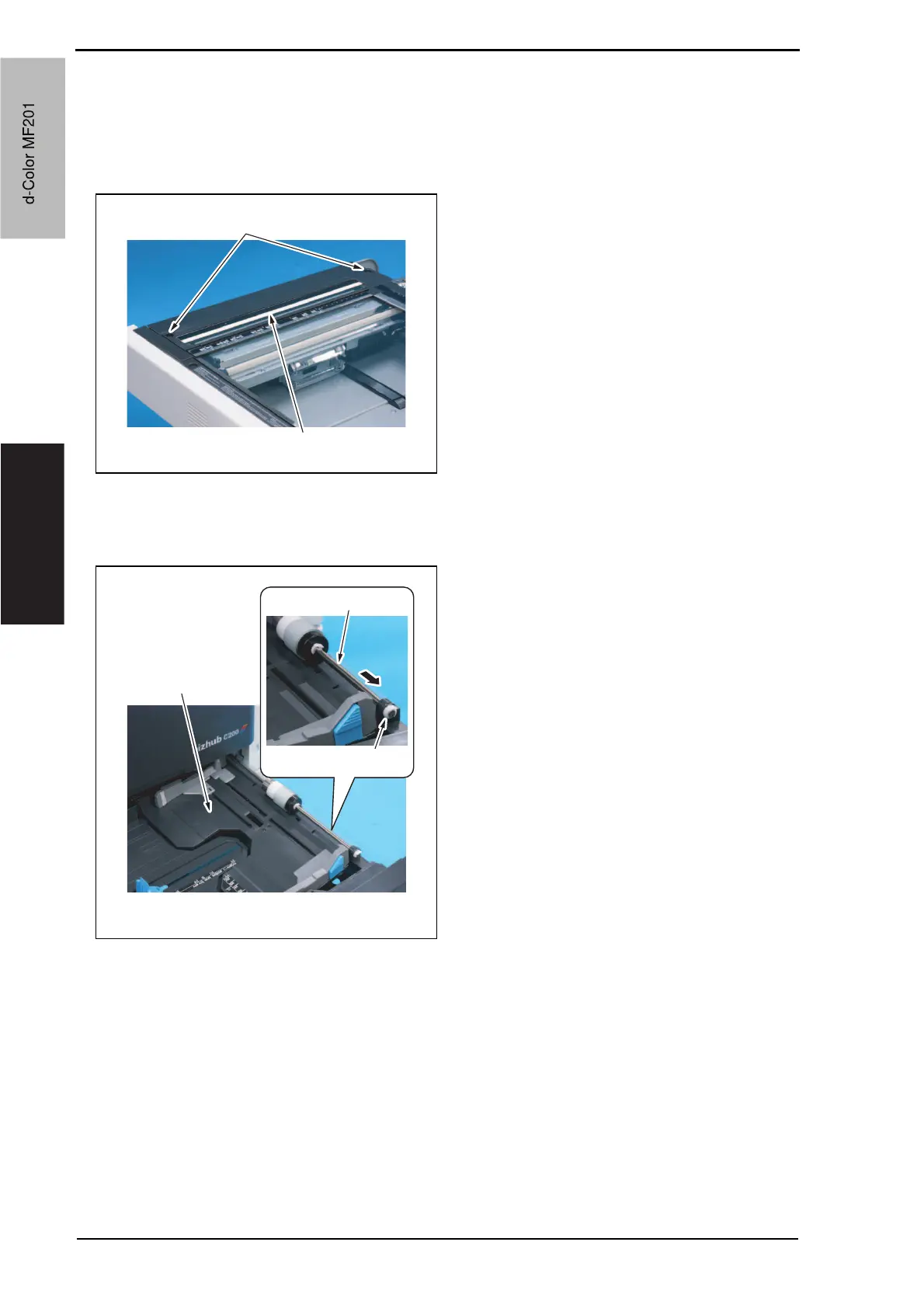

6.3.20 ADF glass assy
1. Remove the IR rear cover.
See P.44
2. Remove the IR left cover.
See P.50
3. Remove two screws [1], and remove
the ADF glass assy [2].
6.3.21 Tray 1 feed roller
1. Slide out the tray 1.
2. Lock the paper lifting plate [1] into
position.
3. Snap off the C-clip [2].
4. Remove the shaft for the tray 1 feed
roller assy [3] from the front bushing.
A02FF2C107DA
[1]
[2]
A02FF2C031DA
[1]
[2]
[3]
d-Color MF201
Service Manual Y109660-1
