Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 6. Other
51
Maintenance

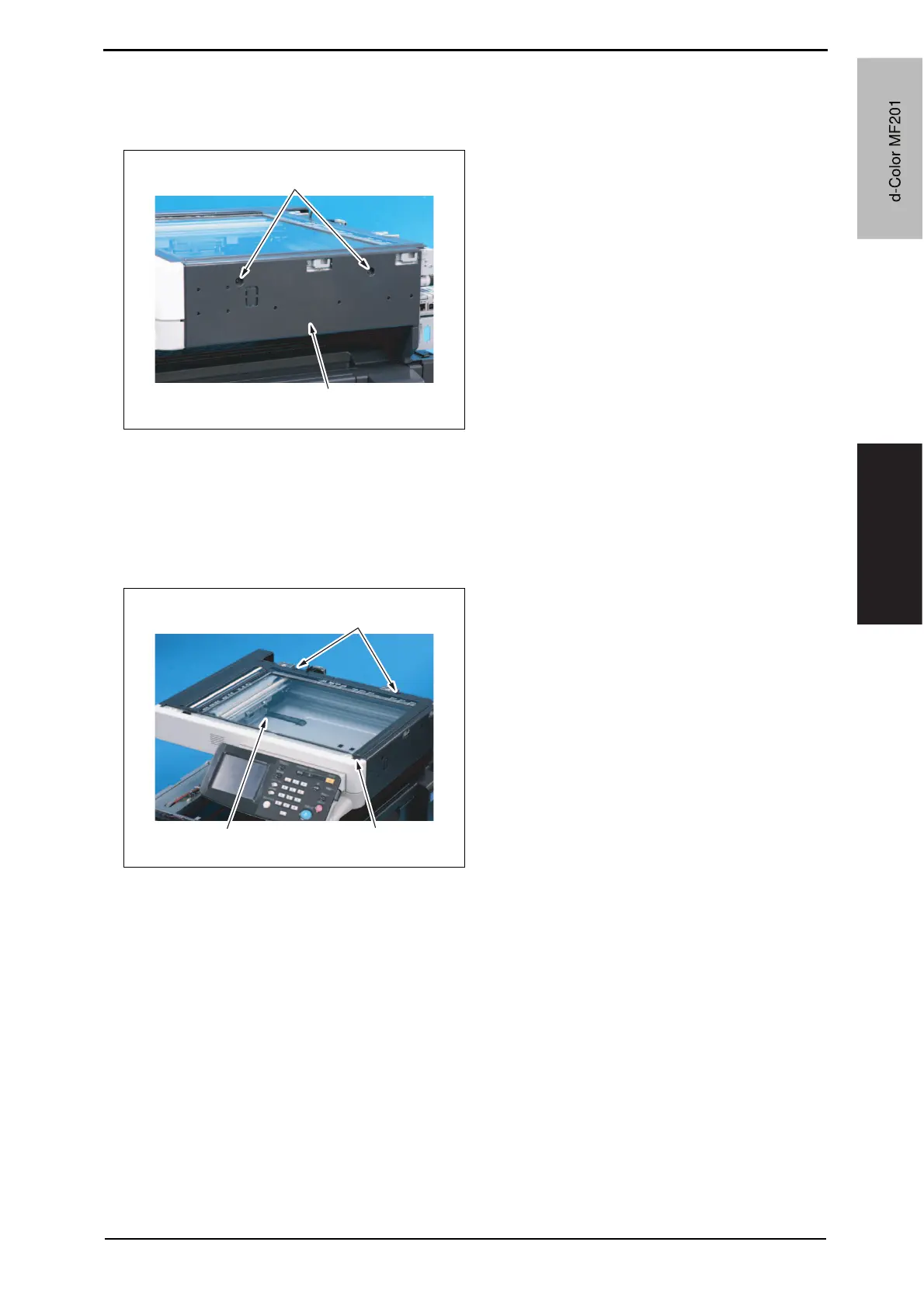

6.3.18 IR right cover
1. Remove the IR rear cover.
See P.44
2. Remove two screws [1], and remove
the IR right cover [2].
6.3.19 Original glass assy
1. Remove the IR rear cover.
See P.44
2. Remove the IR upper front cover.
See P.50
3. Remove three screws [1], and
remove the original glass assy [2].
A02FF2C105DA
[1]
[2]
A02FF2C106DA
[1]
[2] [1]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
