Olivetti d-Color MF201 - Cleaning Procedure; Transfer Belt Unit; PH Window Y,M,C,K

Field Service Ver. 1.0 Jun. 2008 6. Other
107
Maintenance
6.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure represents the ethanol isopropyl
alcohol.

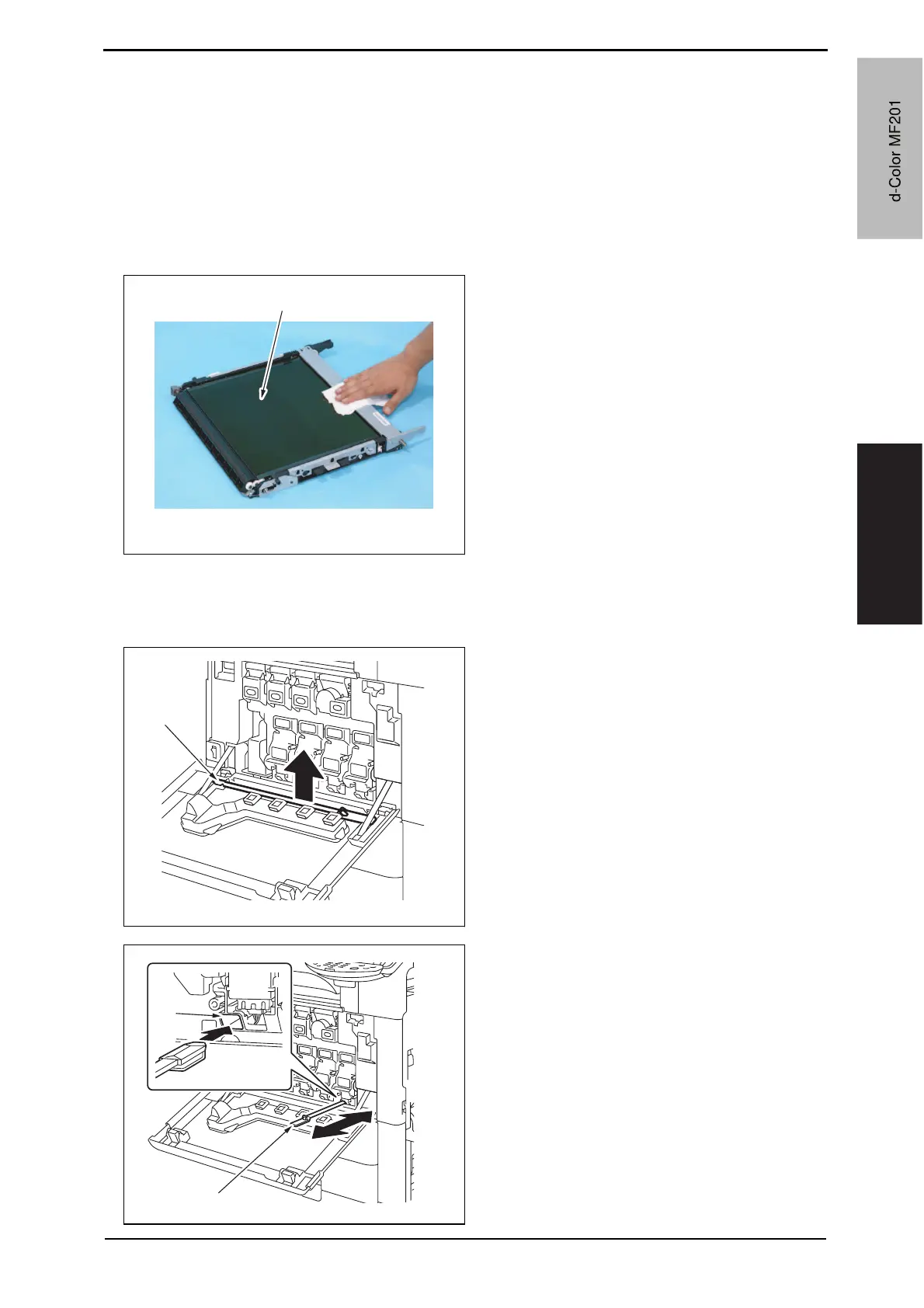

6.4.1 Transfer belt unit
1. Remove the transfer belt unit.
See P.24
2. Using a cleaning pad, wipe the trans-
fer belt [1].
NOTE
• Do not wipe out with water.
• Do not wipe out with any solvents.
6.4.2 PH window Y,M,C,K
1. Open the front door.
2. Remove the PH window cleaning jig
[1] from the front door.
3. Insert the PH window cleaning jig [1]
to the cleaning port [2] and clean it
by putting the jig back and forth a
couple times.
NOTE
• Clean every PH window of Y,M,C,K.
