Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 3. Periodical check
17
Maintenance

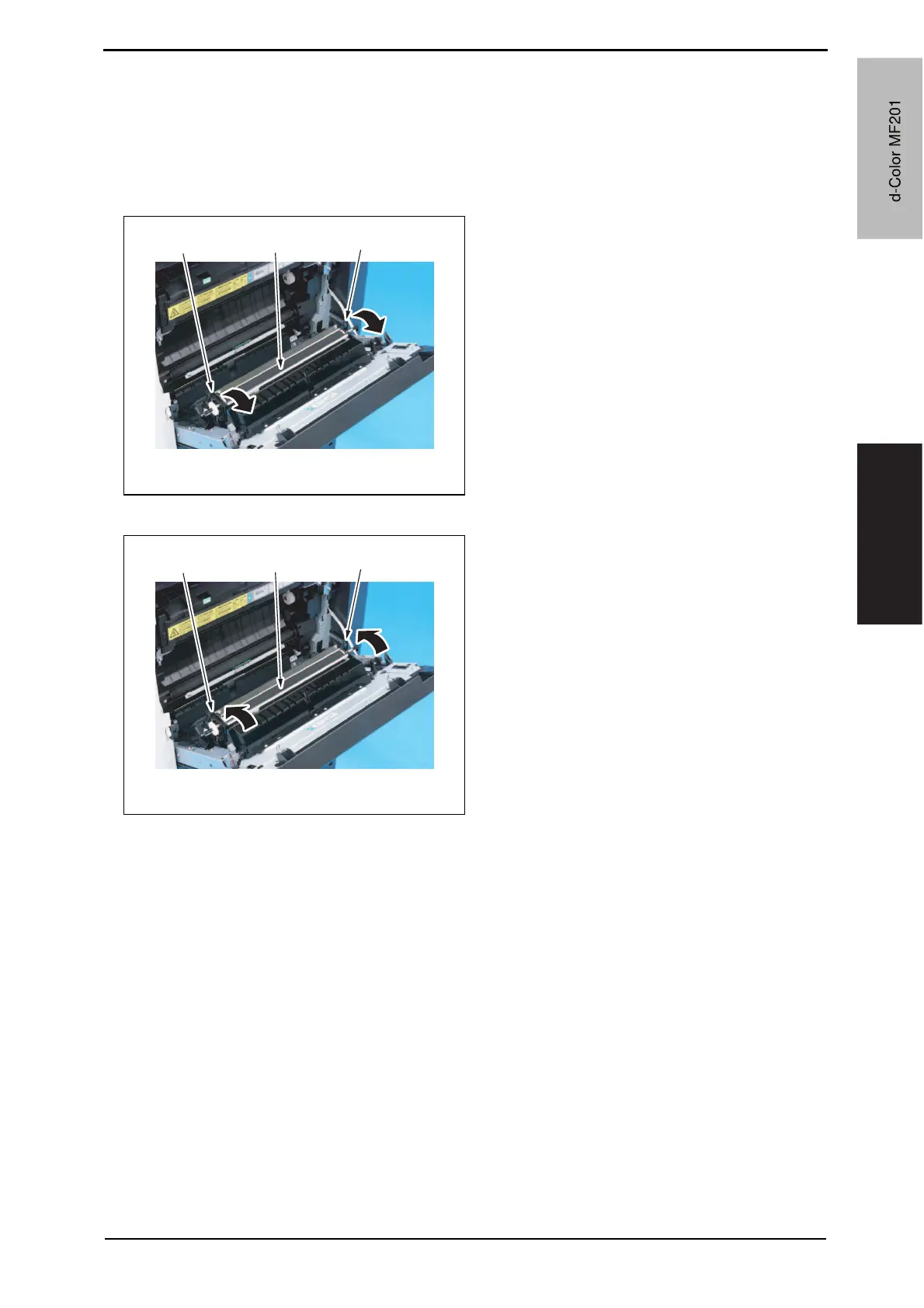

3.4.4 Replacing the transfer roller unit
A. Periodically replacing parts/cycle
• Transfer roller unit: Every 120,000 prints
B. Removal procedure
1. Open the right door.
2. Unlock the lock levers [1] of the
transfer roller unit (at two places).
3. Holding onto the lock levers [1] (at
two places), remove the transfer
roller unit [2].
C. Reinstall procedure
1. Holding onto the lock levers [1] (at
two places), mount the new transfer
roller unit [2].
2. Lock the lock levers [1] (at two
places).
NOTE
• Make sure that the levers are locked
in position both at front and rear.
3. Close the right door.
A02FF2C003DA
[1] [1][2]
A02FF2C004DA
[1] [1][2]
Y109660-1 Sevice Manual
d-Color MF201
