Olivetti d-Color MF201 - MFBU Board (MFBUB)

Field Service Ver. 1.0 Jun. 2008 6. Other
87
Maintenance

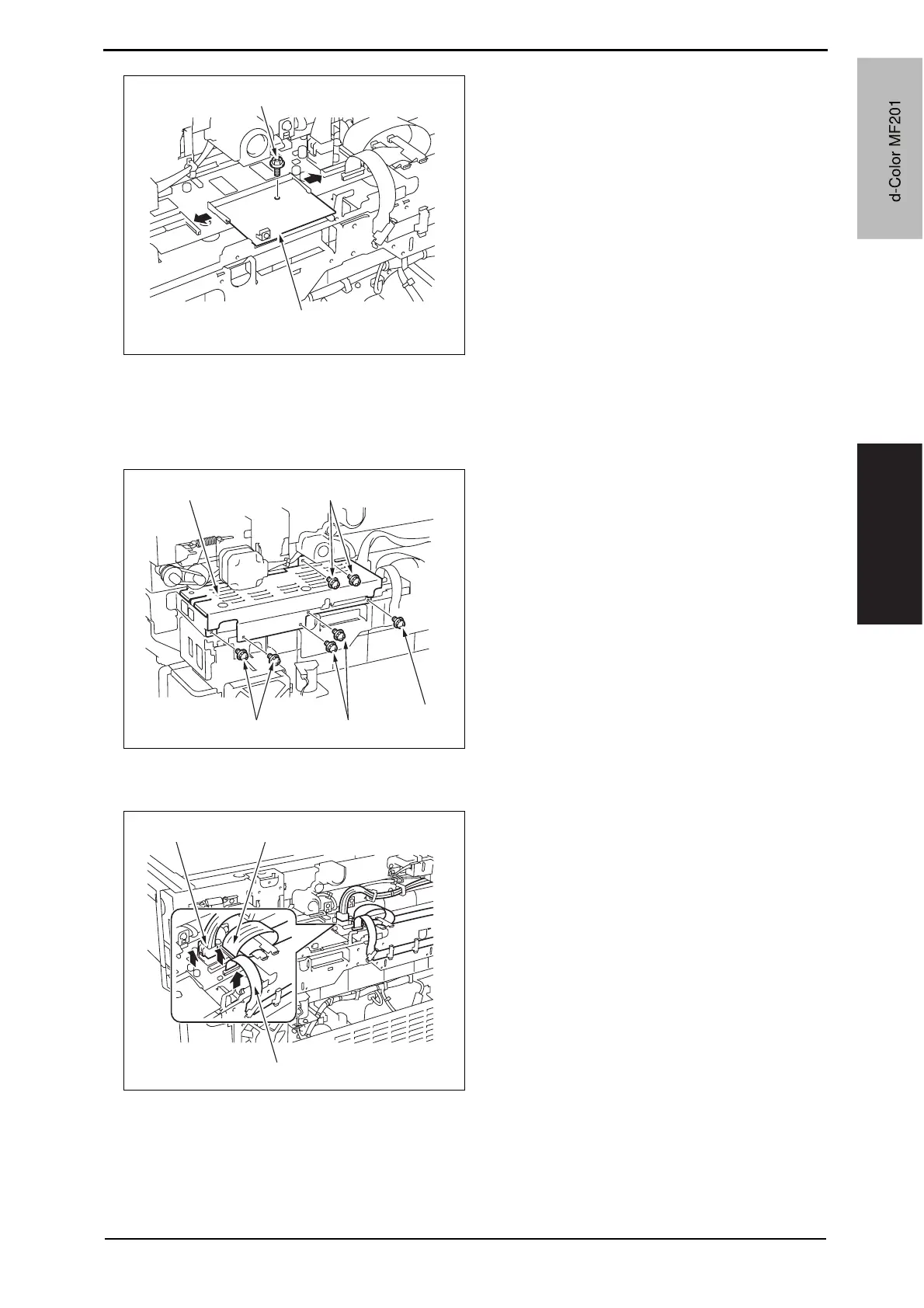

3. Remove the screw [1], and remove
the ADCU board [2].
6.3.40 MFBU board (MFBUB)
1. Remove the IR rear cover.
See P.44
2. Remove seven screws [1], and
remove the MFBU shield cover [2].
3. Remove the ADCU board.
See P.86
4. Disconnect the connector [1] and two
flat cables [2].
A02FF2C509DA
[1]
[2]
A02FF2C508DA
[2]
[1]
[1]
[1]
[1]
A02FF2C510DA
[1] [2]
[2]
