3. Periodical check Field Service Ver. 1.0 Jun. 2008

Maintenance

3.4.8 Replacing the transfer belt unit

A. Periodically replacing parts/cycle

• Transfer belt unit: Every 120,000 prints

NOTE

• Before replacement operations of the transfer belt unit, make sure to turn OFF the

main power switch and the sub power switch.

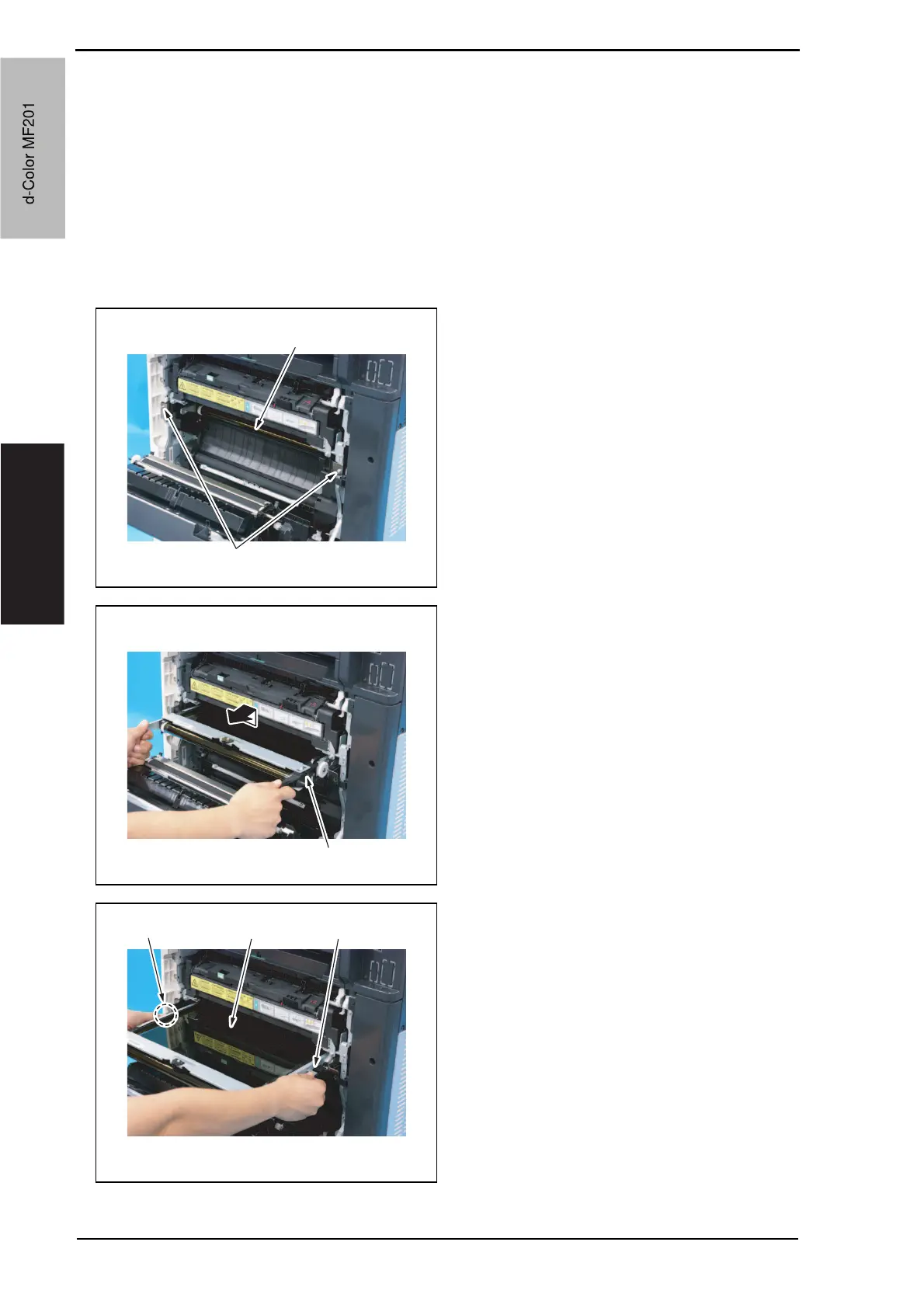

B. Removal procedure

1. Turn OFF the main power switch and the sub power switch.

2. Open the right door.

3. Remove two screws [1] and release

the lock of the transfer belt unit [2].

4. Hold the both sides and lift it to take

out the transfer belt unit [1] a little.

5. Hold the position [1] as shown in the

left and remove the transfer belt unit

[2].

NOTE

• Do not touch the surface of the

Image transfer belt unit.

• Cover the image transfer belt unit

with something such shade cloth to

protect its surface from dust or for-

eign matter.

A02FF2C006DA

[1]

[2]

A02FF2C007DA

[1]

A02FF2C008DA

[1] [1][2]

d-Color MF201

Service Manual Y109660-1

d-Color MF201
