Olivetti d-Color MF201 - PH Relay Board (REYBPH)

Field Service Ver. 1.0 Jun. 2008 6. Other
79
Maintenance
6.3.33 PH relay board (REYBPH)
1. Remove the front cover.
See P.48
2. Remove the transfer belt unit.
See P.24

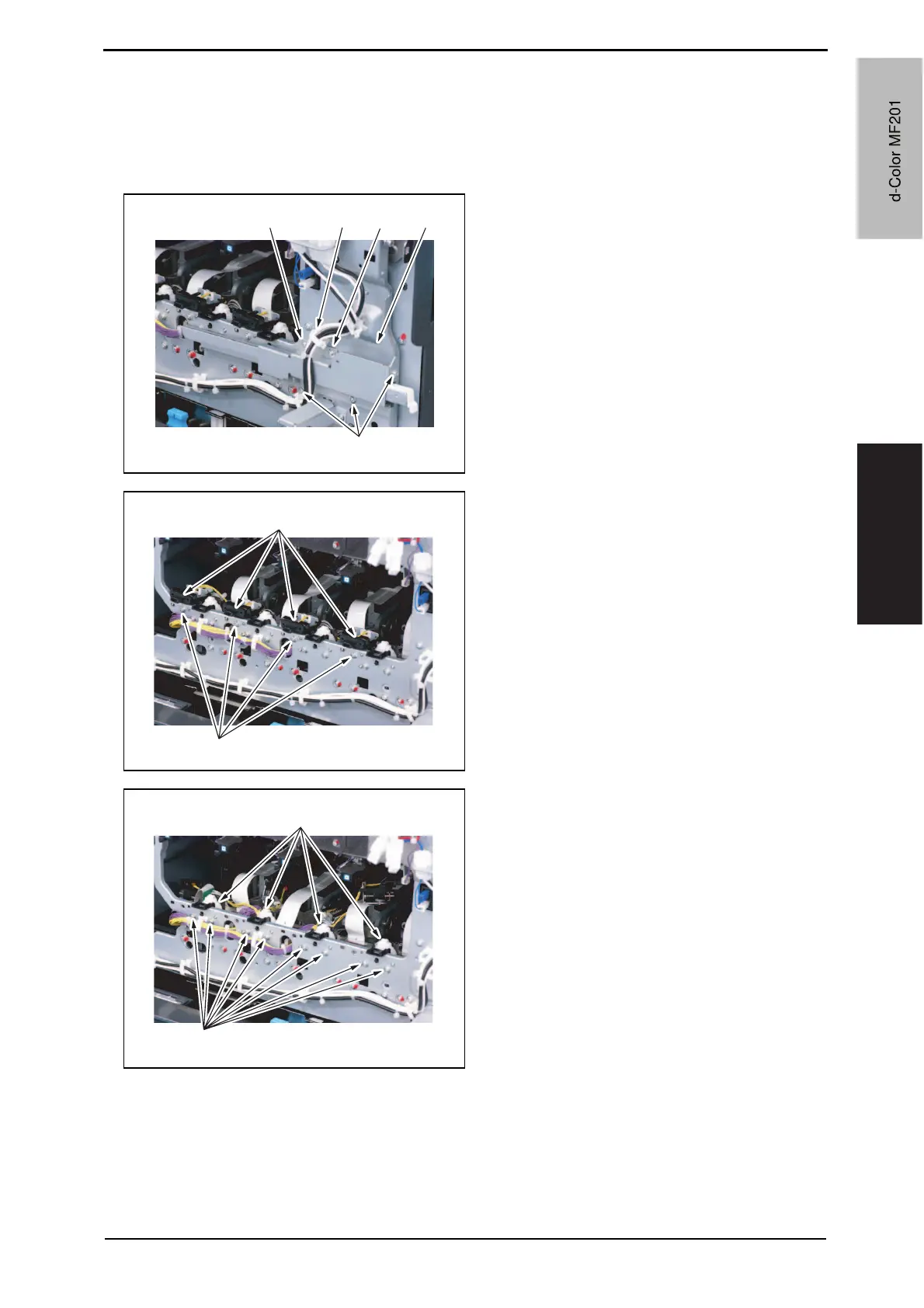

3. Remove the harness from the wire
saddle [1].
4. Remove five screws [2], and remove
the front handle assy [3].
5. Remove the screw [1] each, and
remove the imaging unit contact
assy [2] of each color.
6. Remove two screws [1] each, and
remove the imaging unit roll assy [2]
of each color.
A02FF2C098DA
[1]
[2]
[2] [2] [3]
A02EF2C128DA
[1]
[2]
A02EF2C129DA
[1]
[2]
