Olivetti d-Color MF201 - Mount the Original Size Detection Sensor;2 (PS204)

Field Service Ver. 1.0 Jun. 2008 6. Other
109
Maintenance

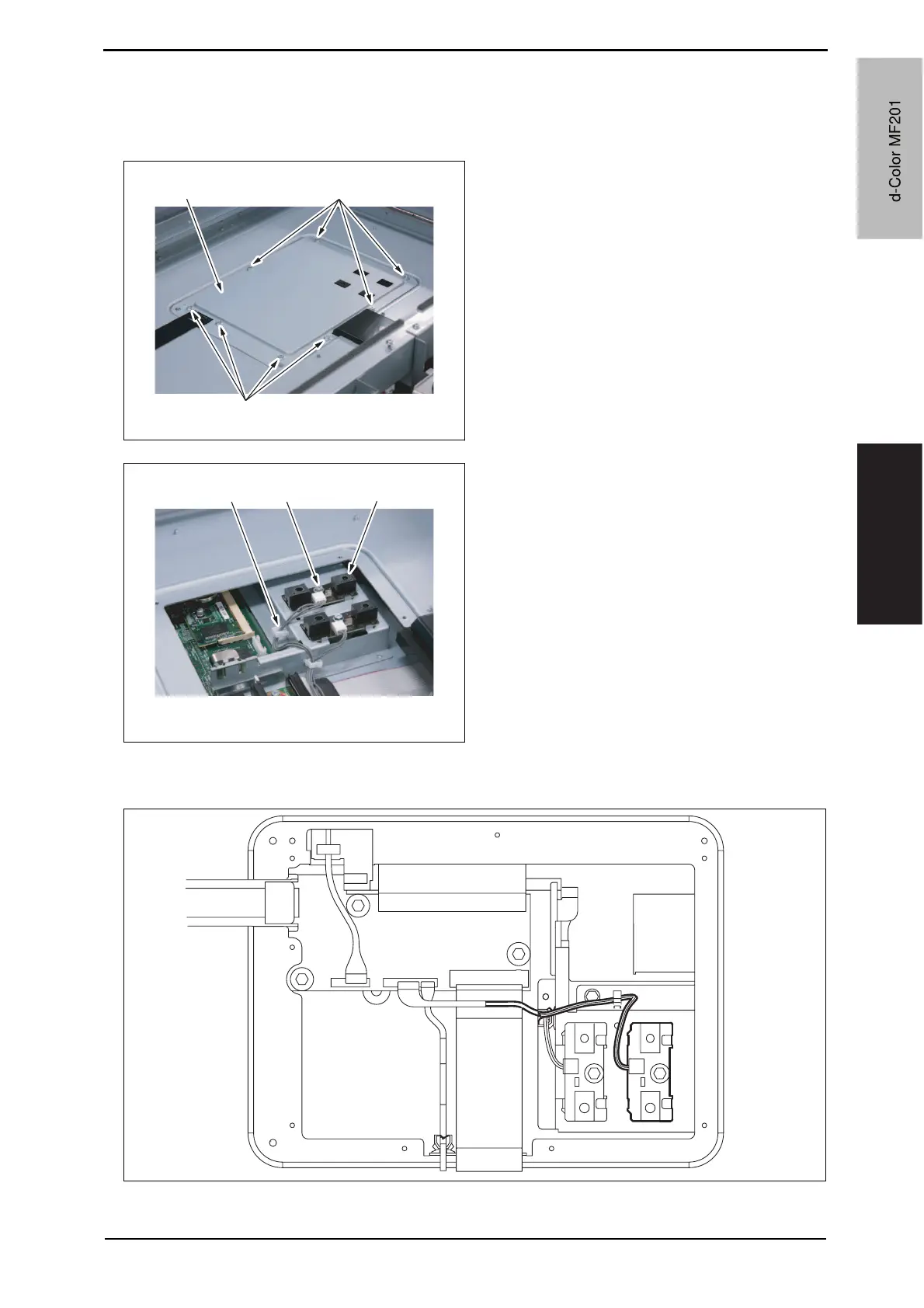

6.5 Mount the original size detection sensor/2 (PS204)
1. Remove the original glass assy.
See P.51
2. Remove eight screws [1], and
remove the BCRU board protective
shield [2].
3. Using the screw [1], mount the origi-
nal size detection sensor/2 (PS204)
[2] and fix it.
4. Remove the option cable [3] from the
clamp, and connect it to the original
size detection sensor/2 [2].
5. Reverse the order of removal proce-
dure.
<How to set the harness>
A02FF2C101DA
[1]
[1]
[2]
A02FF2C102DA
[1] [2][3]
A02FF2E507DA
